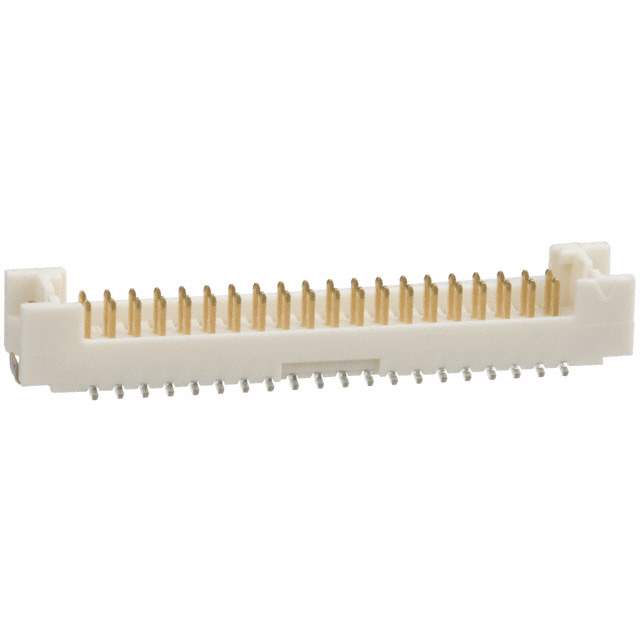

DF13-40DP-1.25V(55)

Get a Quote

Part No	DF13-40DP-1.25V(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 1.25MM / Connector Header Surface Mount 40 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.094" (2.40mm)
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin-Copper
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	DF13
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	*DF13-40DP-1.25V(55),DF13-40DP-1.25V55,DF13-40DP-1.25V55-ND,DF1340DP125V55,H10162,Q2076366A
Standard Package	15
Win Source Part Number	1332840-DF13-40DP-1.25V(55)
Ultra Librarian 3D Model	Ultra Librarian DF13-40DP-1.25V(55) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13-40DP-1.25V(55) is a male pin header rectangular connector.

Number of Positions: 40
Features: Board Guide and Solder Retention
Mounting Type: Surface Mount
Pitch Mating: 0.049 inches (1.25mm)
Contact Finish Mating: Gold with a thickness of 8.00μin (0.203μm)
Contact Finish Post: Tin-Copper with a thickness of 39.4μin (1.00μm)
Win Source Part Number: 1332840-DF13-40DP-1.25V(55)
Category: Connectors, Interconnects
Current Rating: 1A
Voltage Rating: 150V
