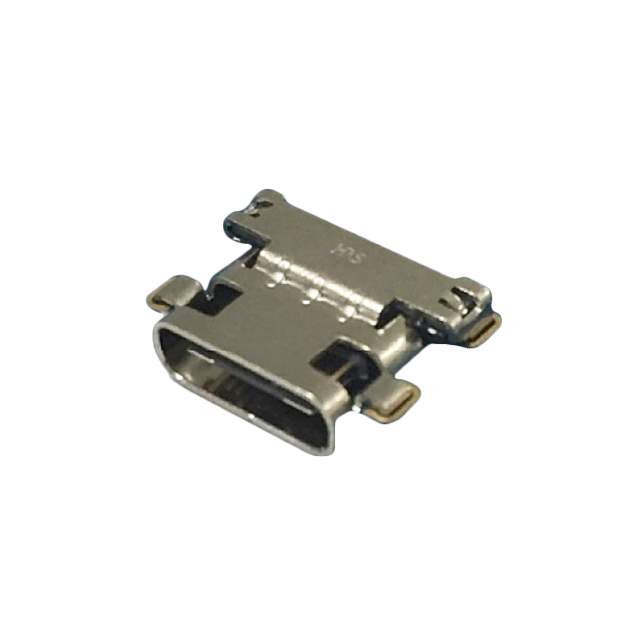

CX70M-24P1 Real Image
Same model may have multiple batches, images only for reference.

CX70M-24P1

Part No CX70M-24P1
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.0 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Datasheet
CX70M-24P1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series CX70M
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Voltage - Rated 20VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number CX70M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125292TR,H125292CT,480-0304-0-00,H125292DKR
Standard Package 1,500
Win Source Part Number 961847-CX70M-24P1
Ultra Librarian 3D Model Ultra Librarian CX70M-24P1 CAD Model

Description

The Hirose Electric Co Ltd electronic component with the Win Source Part Number 961847-CX70M-24P1 is a connector that is designed for USB, DVI, HDMI connections.

  • Series: CX70M
  • Package: Tape & Reel
  • Supply and Demand Status: Unlimited
