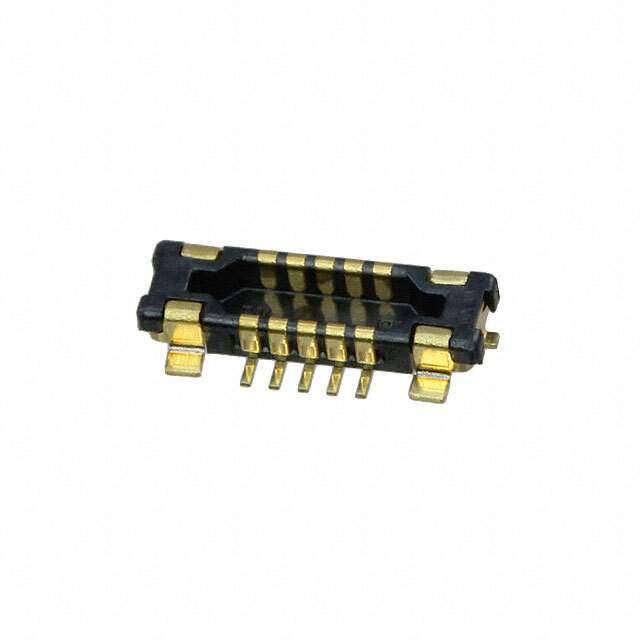

The BM24-10DP/2-0.35V(53) is a rectangular connector manufactured by Hirose Electric Co Ltd. This connector is designed for board-to-board connections, offering a compact and reliable solution for signal transmission.

Applications

• Mobile Devices
• Portable Electronics
• Medical Devices
• Industrial Equipment
• Consumer Electronics

Features

• Number of Contacts: 10
• Pitch: 0.35mm
• Double Row
• Surface Mount (SMT)
• Low Profile Design

Benefits

• High-Density Interconnect
• Space-Saving Design
• Reliable Signal Transmission
• Easy to Integrate into PCBs
• Suitable for Automated Assembly

Technical Specifications

The BM24-10DP/2-0.35V(53) has 10 contacts arranged in a double-row configuration. The contact pitch is 0.35mm, enabling high-density interconnects. The connector is designed for surface mount assembly (SMT). It features a low-profile design, minimizing the height of the connection. The current rating is typically low (e.g., 0.3A per contact). The voltage rating is also specified. The connector is designed to withstand reflow soldering temperatures. Contact material and plating are selected for reliable signal transmission. The housing material provides electrical insulation and mechanical support. The compact size and high-density capability make this connector ideal for space-constrained applications.

It is commonly used in mobile phones, tablets, and other portable devices. The connector provides a reliable electrical connection between two printed circuit boards. The SMT design facilitates automated assembly, reducing manufacturing costs. The low profile helps to minimize the overall height of the device. The BM24 series is known for its robustness and reliability.
