Same model may have multiple batches, images only for reference.

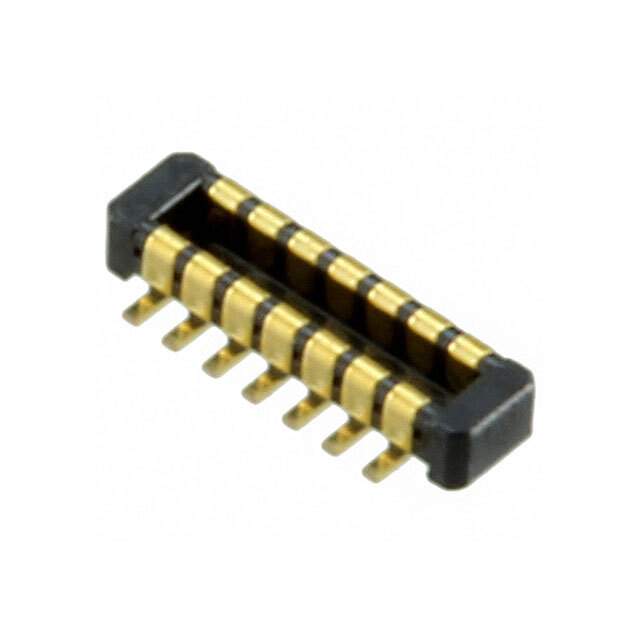

BM14B(0.8)-10DP-0.4V(53) Real Image
Same model may have multiple batches, images only for reference.

BM14B(0.8)-10DP-0.4V(53)

Part No BM14B(0.8)-10DP-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 10POS SMD GOLD / 10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM14B(0.8)-10DP-0.4V(53) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM14
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.024" (0.61mm)
Base Product Number BM14B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -BM14B(0.8)-10DP-0.4V(53)DKR,*BM14B(0.8)-10DP-0.4V(53)-ND,-BM14B(0.8)-10DP-0.4V(53),-BM14B(0.8)-10DP-0.4V(53)CT,H122175DKR,*BM14B(0.8)-10DP-0.4V(53)DKR-ND,*BM14B(0.8)-10DP-0.4V(53)CT-ND,H122175CT,-BM14B(0.8)-10DP-0.4V(53)-ND,H122175TR,684-8010-0-53
Standard Package 1,000
Win Source Part Number 1049461-BM14B(0.8)-10DP-0.4V(53)
Ultra Librarian 3D Model Ultra Librarian BM14B(0.8)-10DP-0.4V(53) CAD Model

Description

The BM14B(0.8)-10DP-0.4V(53) is a rectangular connector array manufactured by Hirose Electric Co Ltd.

  • Supply and Demand: Balanced
  • Contact Finish: Gold
  • Termination Feature: Solder Retention
  • Mounting: Surface Mount Device (SMD)
  • Package: Tape and Reel
