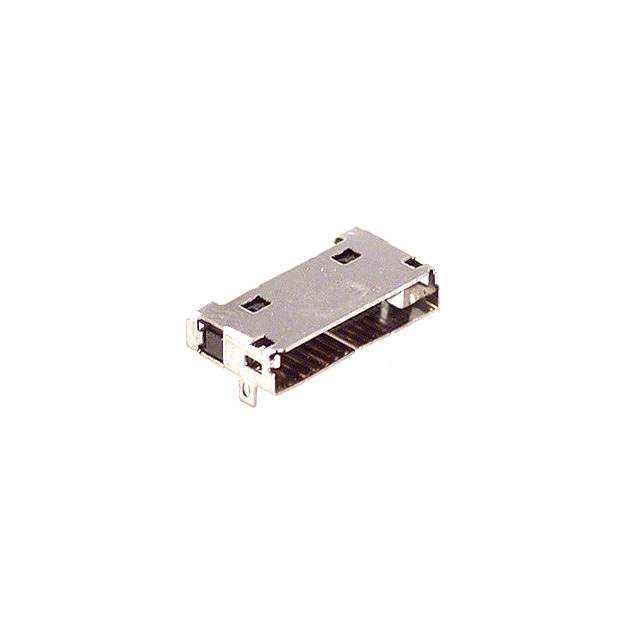

The 991864-3260B-12S3(55) is a rectangular connector that features a receptacle connector type with a center strip contact.

• Connector Type: receptacle
• Contact: center strip
• Number of Positions: 12
• Positions Loaded: all
• Shielded: yes
• Board Guide: yes
• Application: general-purpose
• Contact Material: phosphor bronze
• Voltage Rating: 125VAC
• Fastening Type: latch holder
• Termination: solder
• Pitch Mating: 0.031" (0.80mm)
• Insulation Material: Polyphenylene Sulfide (PPS)
• Package: tape & reel (TR)
• Mounting: surface mount, right angle
• Material Flammability Rating: UL94 V-0
• Color: black
• Contact Finish: gold
• Contact Finish Thickness Mating: 8.00µin (0.203µm)
• Contact Finish Thickness Post: 1.25µin (0.032µm)
• Insulation Height: 0.114" (2.90mm)
• Contact Shape: square
