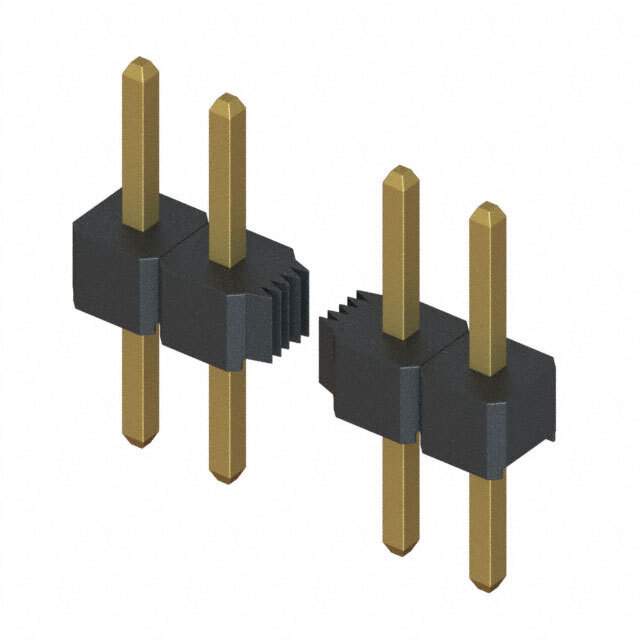

Same model may have multiple batches, images only for reference.

M22-2010605

Name: M22-2010605
Brand: Harwin Inc.
SKU: 1332604
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M22-2010605
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Datasheet	M22-2010605 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.331" (8.40mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Mated Stacking Heights	5.9mm, 8.6mm
Base Product Number	M22-201
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-2277,M222010605,2266-M22-2010605,M22F2010605
Standard Package	1,000
Win Source Part Number	1332604-M22-2010605
Ultra Librarian 3D Model	Ultra Librarian M22-2010605 CAD Model

Description

The Harwin Inc. M22-2010605 is a board to board header connector with 6 male pins.

Mounting Type: through hole
Pitch: 0.079" (2.00mm)
Current Rating: 1A per contact
Packaging: bulk
Standard Package: 1,000
Temperature Range: -55°C to 105°C
ROHS3 Compliant: Yes
Material Flammability Rating: UL94 V-0
