09695017247 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09695017247

Part No 09695017247
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies

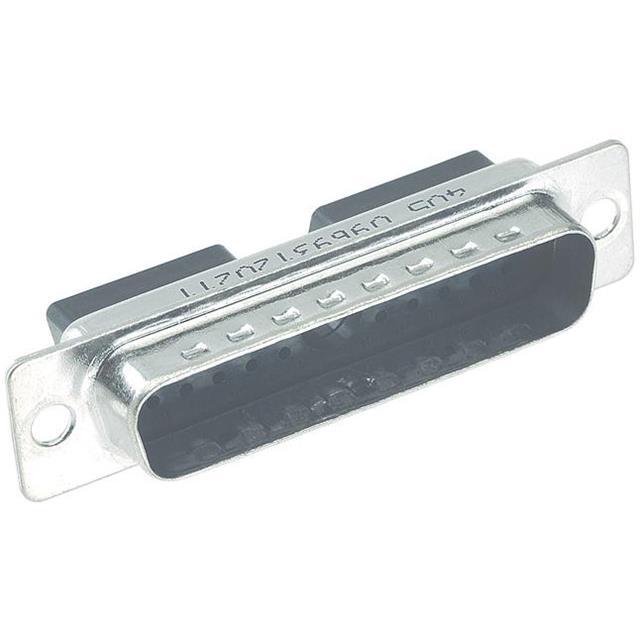

Description CONN D-SUB RCPT 24POS SOLDER CUP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 24 (17 + 7 Coax or Power)
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 5 (DD, D) - 24W7
Contact Type Signal and Coax or Power (Not Included)
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1622089-09695017247
Ultra Librarian 3D Model Ultra Librarian 09695017247 CAD Model
