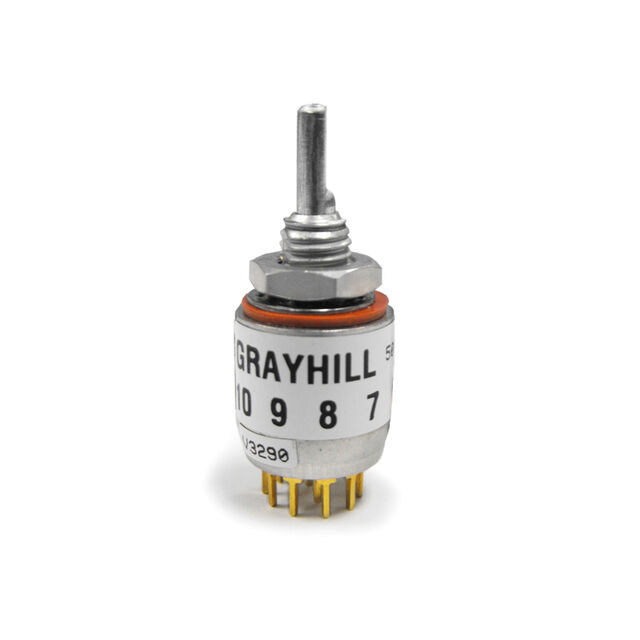

Same model may have multiple batches, images only for reference.
50D90-01-2-AJN Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

50D90-01-2-AJN

Part No 50D90-01-2-AJN
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2POS 150MA 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesRotary Switches
Manufacturer Grayhill Inc.
Series 50
Packaging Bulk
Part Status Active
Number of Positions 2
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DPDT
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 90°
Contact Finish Gold
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 18.77mm
Panel Cutout Dimensions Circular - 6.45mm Dia
Base Product Number 50D90
Ultra Librarian 3D Model Ultra Librarian 50D90-01-2-AJN CAD Model
