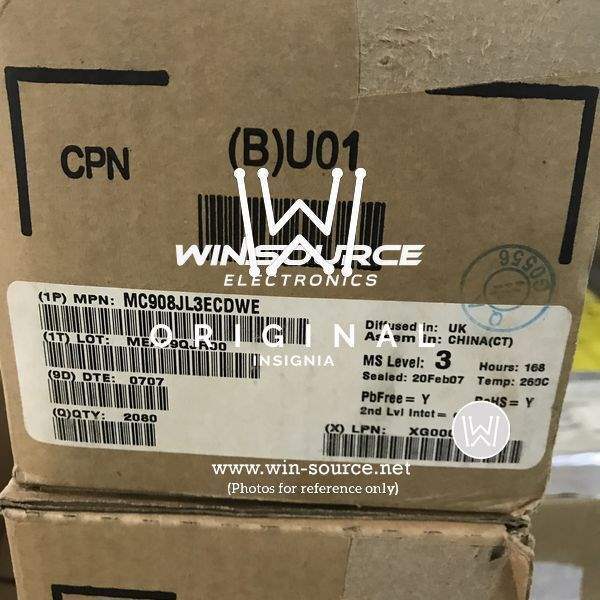

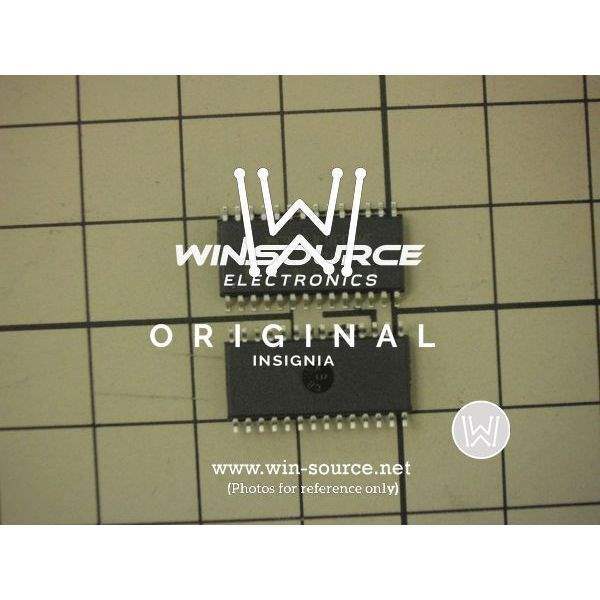

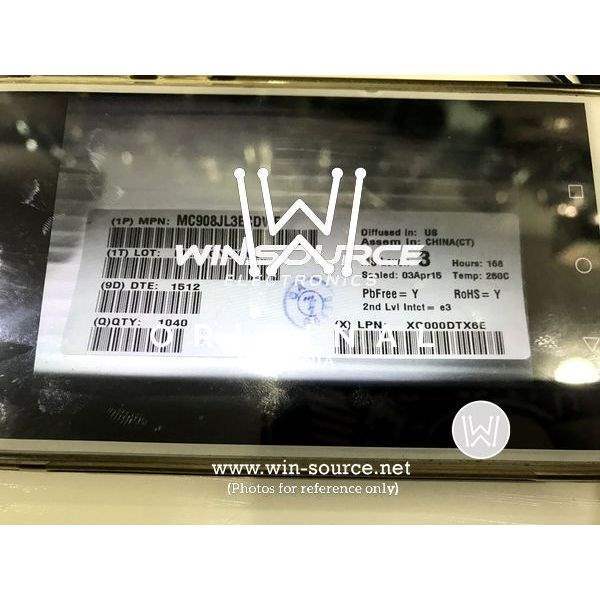

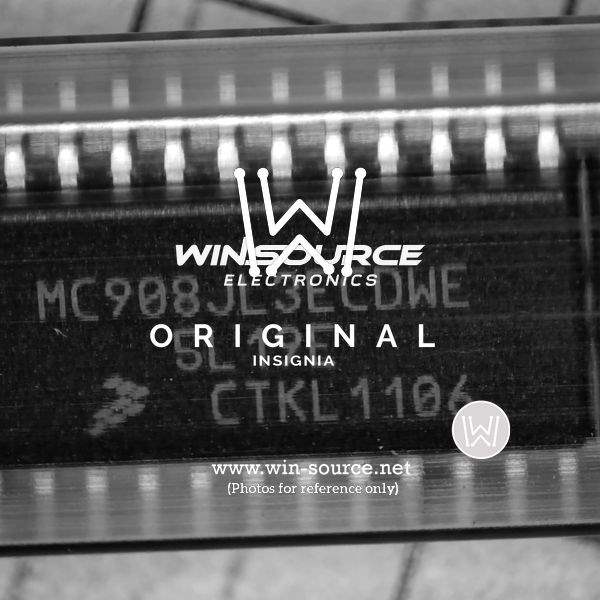

MC908JL3ECDWE Freescale Semiconductor - NXP MC908JL3ECDWE Real Image MC908JL3ECDWE Real Image1 MC908JL3ECDWE Real Image2 MC908JL3ECDWE label picture 2 MC908JL3ECDWE label picture 3 MC908JL3ECDWE real image
Same model may have multiple batches, images only for reference.
MC908JL3ECDWE Freescale Semiconductor - NXP MC908JL3ECDWE Real Image MC908JL3ECDWE Real Image1 MC908JL3ECDWE Real Image2 MC908JL3ECDWE label picture 2 MC908JL3ECDWE label picture 3 MC908JL3ECDWE real image
MC908JL3ECDWE Freescale Semiconductor - NXP MC908JL3ECDWE Real Image MC908JL3ECDWE Real Image1 MC908JL3ECDWE Real Image2 MC908JL3ECDWE label picture 2 MC908JL3ECDWE label picture 3 MC908JL3ECDWE real image
Same model may have multiple batches, images only for reference.

MC908JL3ECDWE

Part No MC908JL3ECDWE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 28SOIC
Datasheet
MC908JL3ECDWE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Not For New Designs
Core Processor HC08
Part Core Size 8-Bit
Speed(Frequency) 8MHz
Number of I/O 23
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
Data RAM Size 128 x 8
Supply Voltage - Operating 2.7 V to 3.3 V
Data Converters A/D 12x8b
Oscillator Type External
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 28-SOIC
Win Source Part Number 022955-MC908JL3ECDWE
Family Name MC908JL3E
Introduction Date September 02, 2005
ECCN EAR99
Country of Origin China, Indonesia
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC908JL3ECDWE CAD Model

Description

The NXP 022955-MC908JL3ECDWE is an HC08 core processor with a speed of 8MHz.

  • Speed: 8MHz
  • Program Memory Size: 4KB (4K x 8)
  • Program Memory Type: FLASH
  • Data Converter: A/D 12x8b
  • I/O: 23
  • Package: 28-SOIC
  • Status: not for new designs
