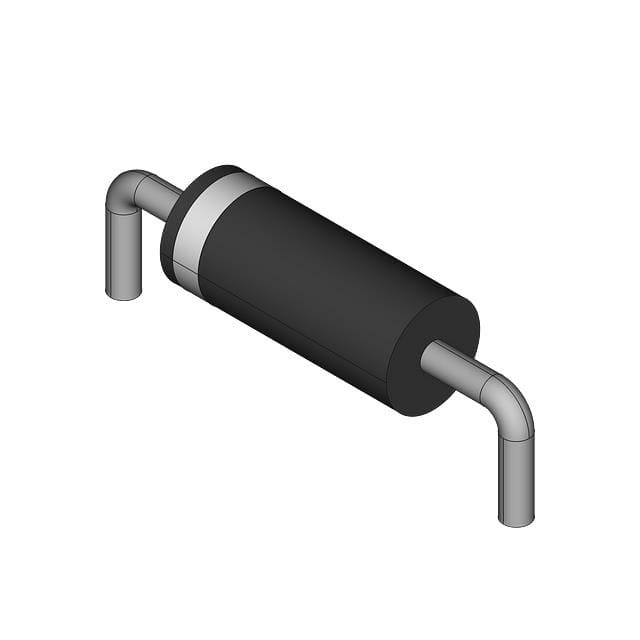

Same model may have multiple batches, images only for reference.
SA9V0CA Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SA9V0CA

Part No SA9V0CA
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Fairchild Semiconductor
Package Bulk
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 9V
Voltage - Breakdown (Min) 10V
Voltage - Clamping (Max) @ Ipp 15.4V
Current - Peak Pulse (10/1000µs) 32.5A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Other Names 2156-SA9V0CA,2156-SA9V0CA-FSTR,FAIFSCSA9V0CA
Standard Package 4,000
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300940-SA9V0CA
Ultra Librarian 3D Model Ultra Librarian SA9V0CA CAD Model

Description

The SA9V0CA is a high-performance TVS diode manufactured by Fairchild Semiconductor.

  • Voltage Breakdown: 10V
  • Voltage Clamping: 15.4V @ Ipp
  • Power Peak Pulse: 500W
  • Application: General-purpose applications
  • Standard Package: 4,000
