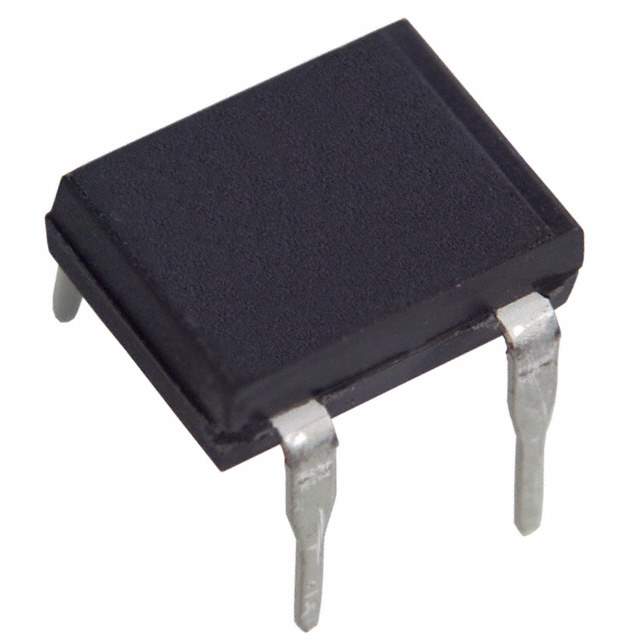

DF10M Real Image
Same model may have multiple batches, images only for reference.

DF10M

Part No DF10M
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 1000V 1.5A 4DIP
Datasheet
DF10M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 1032854-DF10M
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF10M CAD Model

Description

The DF10M is a single-phase diode manufactured by Fairchild/ON Semiconductor.

  • Win Source Part Number: 1032854-DF10M
  • Application: Power Management
  • Category: Discrete Semiconductor Products
  • Supply and Demand Status: Balance
  • Average Rectified Current: 1.5A
  • Peak Reverse Voltage: 1000V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package Quantity: 5k pieces
