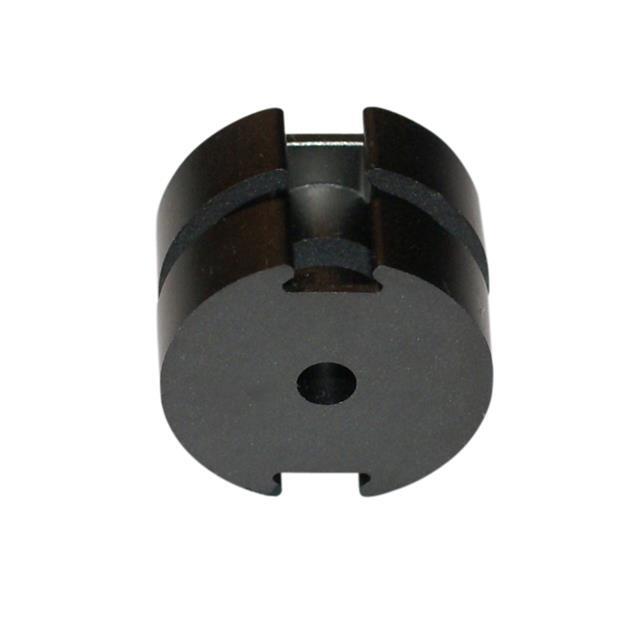

5678140921 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5678140921

Part No 5678140921
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PS 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PS
Material 78
Diameter 0.551" (14.00mm)
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 79.0
Effective Length (le) mm 19.8
Effective Area (Ae) mm2 25.1
Effective Magnetic Volume (Ve) mm3 495.0
Finish Uncoated
Height 0.165" (4.20mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528074-5678140921
Ultra Librarian 3D Model Ultra Librarian 5678140921 CAD Model

Description

N
