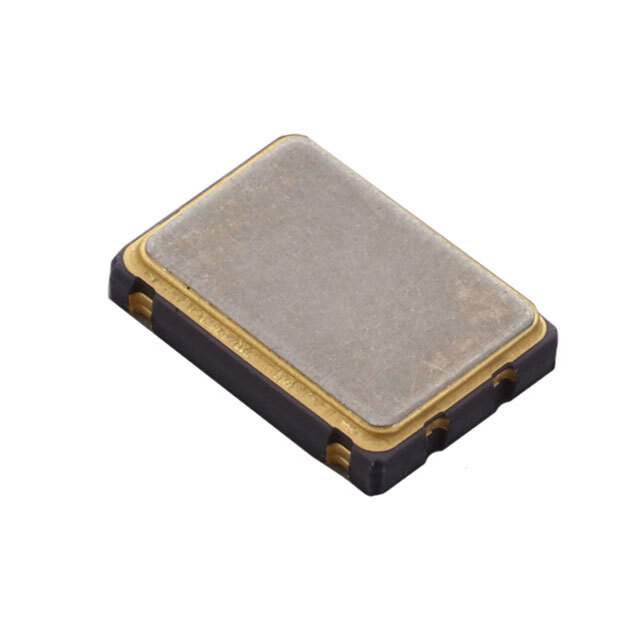

SG-8002CA 16.0000M-PTBB Real Image
Same model may have multiple batches, images only for reference.

SG-8002CA 16.0000M-PTBB

Part No SG-8002CA 16.0000M-PTBB
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ CMOS SMD / 16 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
Datasheet
SG-8002CA 16.0000M-PTBB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-8002CA
Package Bulk
Product Status Not For New Designs
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 30mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-8002CA16.0000M-PTBB,SG-8002CA 16.0000M-PTBB-ND
Standard Package 1
Win Source Part Number 1092625-SG-8002CA 16.0000M-PTBB
Ultra Librarian 3D Model Ultra Librarian SG-8002CA 16.0000M-PTBB CAD Model

Description

The SG-8002CA 16.0000M-PTBB is an electronic component available on Win Source with part number 1092625-SG-8002CA 16.0000M-PTBB.

  • Type: XO (Standard)
  • Frequency: 16 MHz
  • Frequency Stability: ±50ppm
  • Package: bulk package
  • Standard Package: 1
  • Temperature Range: -20°C to 70°C
  • Voltage Supply: 5V
