Same model may have multiple batches, images only for reference.

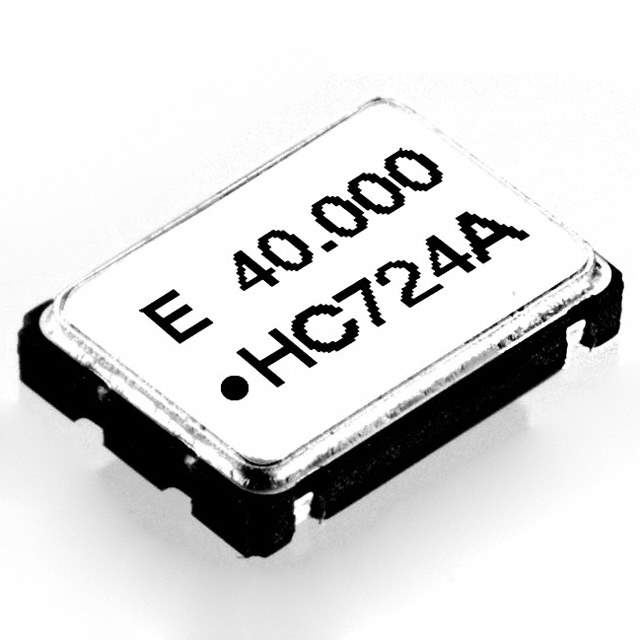

SG-710ECK 25.0000MC Real Image
Same model may have multiple batches, images only for reference.

SG-710ECK 25.0000MC

Part No SG-710ECK 25.0000MC
Manufacturer Epson Company
Catalog Oscillators
Description OSC XO 25.000MHZ CMOS SMD / Oscillator XO 25MHz ±100ppm 15pF CMOS 55% 3.3V 4-Pin CSMD Bulk
Datasheet
SG-710ECK 25.0000MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Series SG-710
Packaging Bulk
Part Status Obsolete(EOL)
Type XO (Standard)
Frequency 25MHz
Function Standby (Power Down)
Output CMOS
Operating Supply Voltage 3.3V
Frequency Stability ±100ppm
Operating Temperature Range -10°C ~ 70°C
Maximum Supply Current 8mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.287" L x 0.189" W (7.30mm x 4.80mm)
Height - Seated (Maximum) 0.055" (1.40mm)
Current - Supply (Disable) (Maximum) 13μA
Win Source Part Number 794178-SG-710ECK 25.0000MC
Popularity Medium
Supply and Demand Status Limited
Introduction Date March 21, 2000
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SG-710ECK 25.0000MC CAD Model

Description

The SG-710ECK 25.0000MC is a crystal oscillator with a frequency of 25MHz.

  • Operating Temperature: -10°C to 70°C
  • Mounting: SMD
  • Package: 4-SMD, no lead
  • Function: Standby (Power Down)
  • Output: CMOS
  • Frequency Stability: ±100ppm
  • RoHS Compliance: Yes
  • Halogen-Free: Yes
  • Estimated EOL Date: 2021
