Same model may have multiple batches, images only for reference.

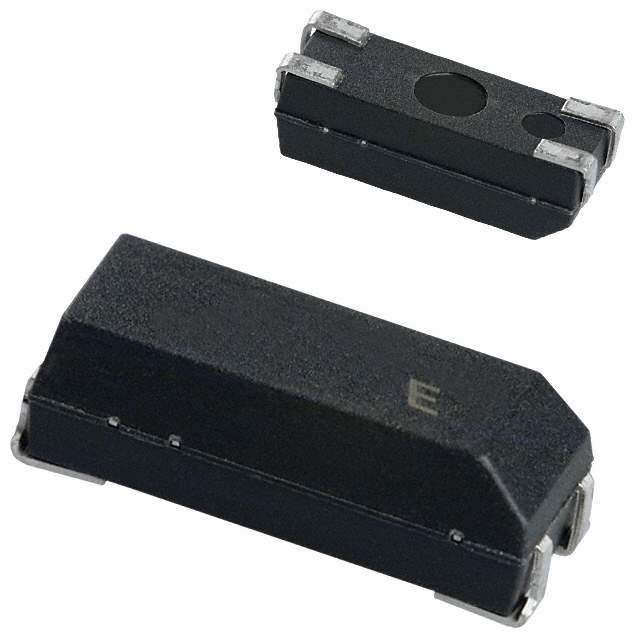

MA-506 7.3728M-C3:ROHS Real Image
Same model may have multiple batches, images only for reference.

MA-506 7.3728M-C3:ROHS

Part No MA-506 7.3728M-C3:ROHS
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 7.3728MHZ 18PF SMD / 7.3728 MHz ±50ppm Crystal 18pF 80 Ohms 4-SOJ, 3.30mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr EPSON
Series MA-506
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 3.30mm pitch
Size / Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.181" (4.60mm)
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1341329-MA-506 7.3728M-C3:ROHS
Ultra Librarian 3D Model Ultra Librarian MA-506 7.3728M-C3:ROHS CAD Model

Description

The MA-506 series MHz crystal from EPSON has a frequency of 7.3728 MHz and an ESR (Equivalent Series Resistance) of 80 Ohms.

  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±50ppm
  • Type: fundamental
  • Mounting: surface mount technology
  • Size: 0.500" L x 0.200" W (12.70mm x 5.08mm)
  • Operating Temperature: -20°C ~ 70°C
  • Status: obsolete
