Same model may have multiple batches, images only for reference.

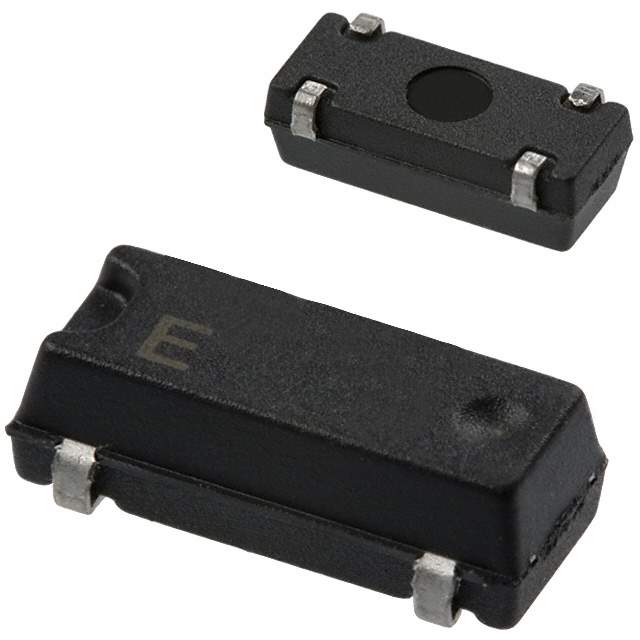

MA-306 18.4320M-C0 Real Image
Same model may have multiple batches, images only for reference.

MA-306 18.4320M-C0

Part No MA-306 18.4320M-C0
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 18.4320MHZ 18PF SMD / 18.432 MHz ±50ppm Crystal 18pF 60 Ohms 4-SOJ, 5.50mm pitch
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr EPSON
Series MA-306
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.50mm pitch
Size / Dimension 0.315" L x 0.126" W (8.00mm x 3.20mm)
Height - Seated (Max) 0.100" (2.54mm)
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1351498-MA-306 18.4320M-C0
Ultra Librarian 3D Model Ultra Librarian MA-306 18.4320M-C0 CAD Model

Description

The 1351498-MA-306 18.4320M-C0 is a MHz Crystal from EPSON.

  • Mounting Type: Surface Mount
  • Package / Case: 4-SOJ
  • Pitch: 5.50mm
  • Frequency: 18.432 MHz
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±50ppm
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Product Status: Obsolete
  • RoHS Status: Non-Compliant
  • Temperature Range: -20°C to 70°C
  • ECCN: EAR99
  • Size / Dimension: 0.315" L x 0.126" W (8.00mm x 3.20mm)
  • Height - Seated (Max): 0.100" (2.54mm)
  • Packaging: Tape and Reel
  • Standard Package: 1,000
