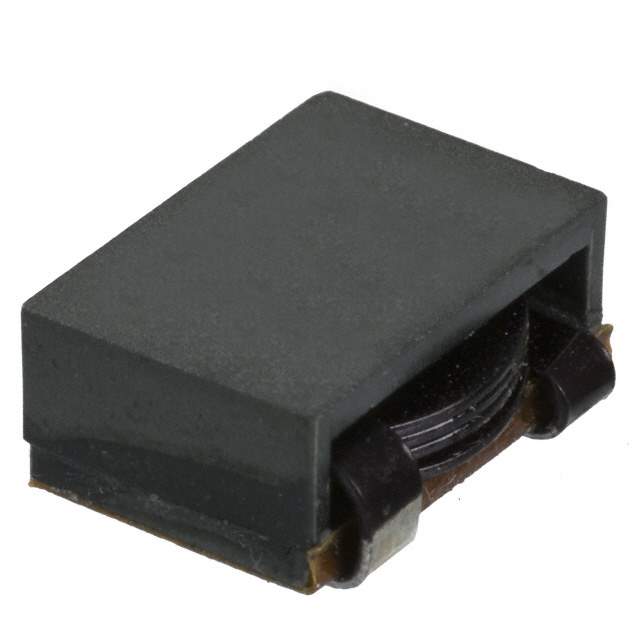

Same model may have multiple batches, images only for reference.

B82559A0302A013

Name: B82559A0302A013
Brand: EPCOS (TDK)
SKU: 1173163
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82559A0302A013
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	FIXED IND 3UH 13A 4 MOHM SMD / 3 µH Shielded Drum Core, Wirewound Inductor 13 A 4mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	ERU13 - Flat Wire Inductor
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3 µH
Tolerance	±10%
Current Rating (Amps)	13 A
Current - Saturation (Isat)	13A
Shielding	Shielded
DC Resistance (DCR)	4mOhm
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	10 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.512" L x 0.421" W (13.00mm x 10.70mm)
Height - Seated (Max)	0.195" (4.95mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-B82559A302A13,495-1864-6,-495-1864-1-ND,B82559A 302A 13,B82559A302A13,495-1864-1,495-1864-2,-495-1864-1
Standard Package	750
Win Source Part Number	1173163-B82559A0302A013
Ultra Librarian 3D Model	Ultra Librarian B82559A0302A013 CAD Model

Alternative Products

Description

The ERU13 - Flat Wire Inductor is a drum core, wirewound inductor that belongs to the Inductors, Coils, Chokes category.

Core Type: Drum Core
Winding Type: Wirewound
Shielding: Yes
Inductance: 3 µH
Inductance Tolerance: ±10%
Package: Nonstandard Tape & Reel
DC Resistance: 4mOhm
Operating Temperature Range: -40°C to 130°C
Dimension: 0.512" L x 0.421" W (13.00mm x 10.70mm)
Current Rating: 13 A
