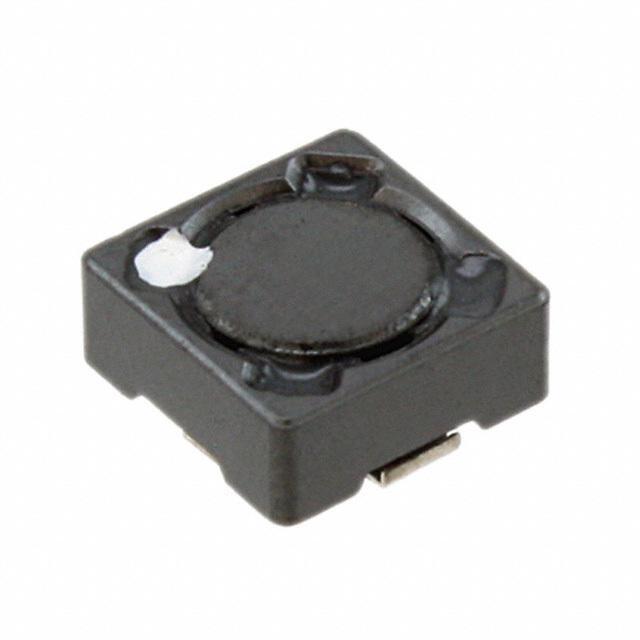

B82472G4473M000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82472G4473M000

Part No B82472G4473M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 47UH 860MA 300 MOHM / Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.86A 0.3Ohm DCR T/R
Datasheet
B82472G4473M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82472G4
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 860mA
Current - Saturation 650mA
Shielding Shielded
DC Resistance (DCR) 300 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Win Source Part Number 769577-B82472G4473M000
Popularity Medium
Supply and Demand Status Balance
Family Name B82472G4
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82472G4473M000 CAD Model

Description

The 769577-B82472G4473M000 is a wirewound ferrite core inductor manufactured by EPCOS (TDK).

  • Shielding: Shielded
  • Inductance: 47μH
  • Current Rating: 860mA
  • Tolerance: ±20%
  • DC Resistance (DCR): 300 mOhm max
  • Height: 0.138 inches
  • Mounting: Surface Mount Technology (SMT)
  • Applications: Inductors, Coils, Chokes
  • Operating Temperature Range: -55°C to 125°C
  • Popularity: Medium
