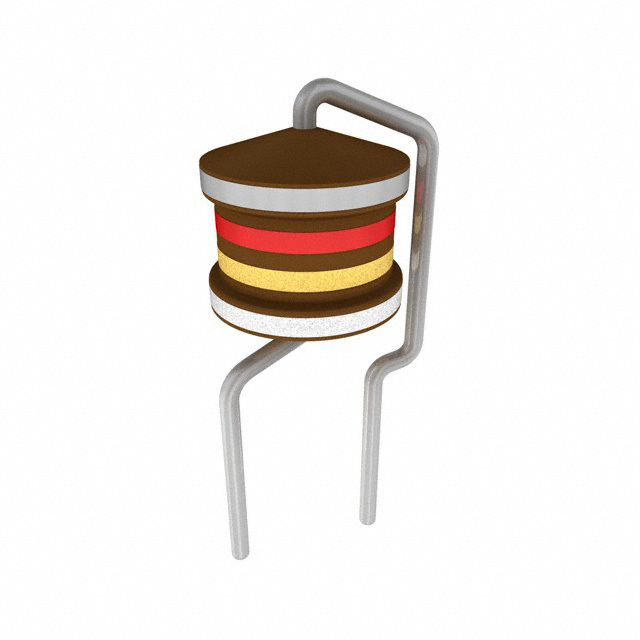

Same model may have multiple batches, images only for reference.

B82144B2822K000

Name: B82144B2822K000
Brand: EPCOS (TDK)
SKU: 1488785
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82144B2822K000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	8.2 µH Unshielded Drum Core, Wirewound Inductor 2.65 A 105mOhm Max Radial, Vertical Cylinder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	EPCOS - TDK Electronics
Series	LBC
Packaging	Tape & Reel (TR)Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	8.2 µH
Tolerance	±10%
Current Rating (Amps)	2.65 A
Current - Saturation (Isat)	3.1A
Shielding	Unshielded
DC Resistance (DCR)	105mOhm Max
Q @ Freq	40 @ 252kHz
Frequency - Self Resonant	28MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1488785-B82144B2822K000
Ultra Librarian 3D Model	Ultra Librarian B82144B2822K000 CAD Model
