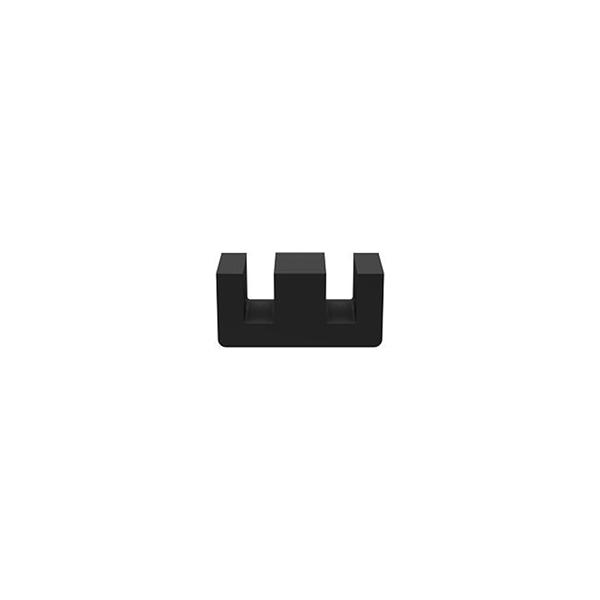

B66387G2500X187 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B66387G2500X187

Part No B66387G2500X187
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N87 Ferrite Core E Type 2.559" (65.00mm) Length 1.079" (27.40mm) Width Diameter 1.291" (32.80mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series E65/32/27
Packaging Box
Core Type E
Supplier Device Package E 65 x 32 x 27
Material N87
Gap Gapped
Initial Permeability (µi) 2200
Core Factor (ΣI/A) mm⁻¹ 0.27
Effective Length (le) mm 147.0
Effective Area (Ae) mm2 535.0
Minimum Core Cross Section (Amin) mm2 529.0
Effective Magnetic Volume (Ve) mm3 78600.0
Finish Uncoated
Height 1.291" (32.80mm)
Length 2.559" (65.00mm)
Width 1.079" (27.40mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1484682-B66387G2500X187
Ultra Librarian 3D Model Ultra Librarian B66387G2500X187 CAD Model
