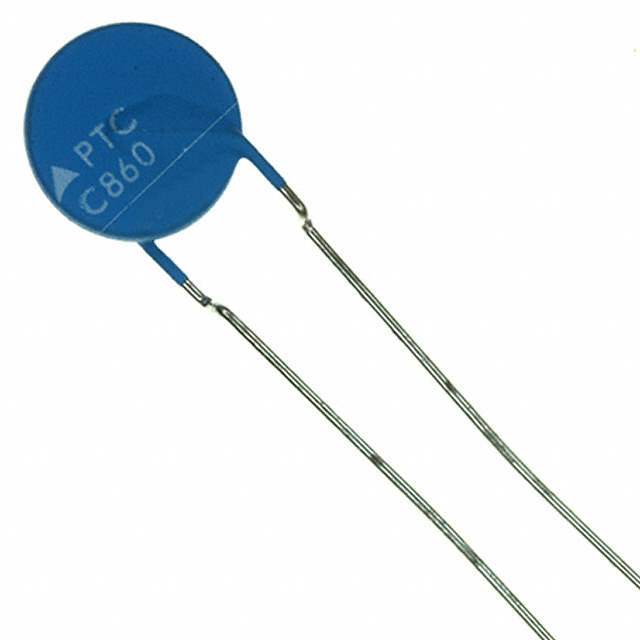

B59860C0160A070 EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B59860C0160A070

Part No B59860C0160A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 160V 180MA RADIAL
Datasheet
B59860C0160A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Packaging  Bulk
Part Status Active
Type Ceramic
Voltage - Max 160V
Current - Hold (Ih) (Max) 180 mA
Current - Trip (It) 360 mA
Current - Max 1.5 A
Resistance - 25°C (Typ) 15 Ohms
Operating Temperature 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.433" Dia x 0.197" T (11.00mm x 5.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Ultra Librarian 3D Model Ultra Librarian B59860C0160A070 CAD Model

Description

Ceramic PTC Resettable Fuse 160V 180 mA Ih Through Hole Radial, Disc
