Same model may have multiple batches, images only for reference.

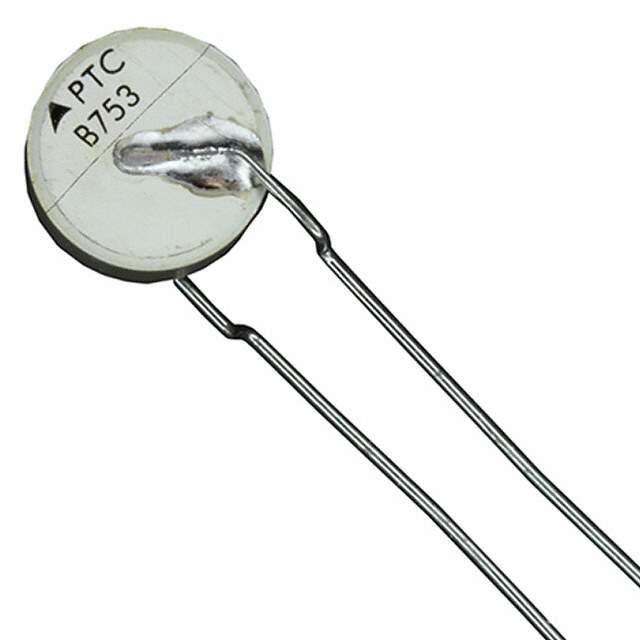

B59753B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59753B0120A070

Part No B59753B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Package Bulk
Type Ceramic
Voltage - Max 420V
Current - Max 2 A
Current - Trip (It) 112 mA
Time to Trip 3 s
Resistance - 25°C (Typ) 120 Ohms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1316045-B59753B0120A070
Ultra Librarian 3D Model Ultra Librarian B59753B0120A070 CAD Model

Description

This electronic component is a PTC resettable fuse product from EPCOS - TDK Electronics.

  • Material: Ceramic
  • Height: 0.650 inches
  • Lead Spacing: 0.197 inches
  • Maximum Voltage: 420V
  • Maximum Current: 2A
  • Current Trip: 112mA
  • Time to Trip: 3s
  • Package/Case: Radial, Disc
  • Temperature Range: 0°C to 60°C
  • Resistance @ 25°C: 120 ohms
  • REACH: Unaffected
