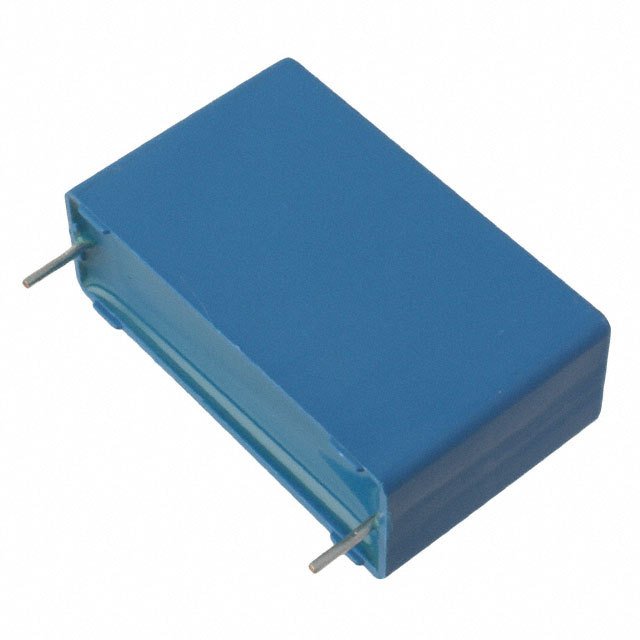

Same model may have multiple batches, images only for reference.
B32672L8682J EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32672L8682J

Part No B32672L8682J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 6800PF 5% 2KVDC RADIAL
Datasheet
B32672L8682J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 6800pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 101961-B32672L8682J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32672L8682J CAD Model

Description

Description

The B32672L8682J metallized film capacitor offers excellent frequency characteristics and high dielectric strength, making it suitable for a wide range of electronic applications.

Applications

  • Inverters
  • Switch-Mode Power Supplies
  • Industrial Electronics
  • DC-DC Converters

Features and Benefits

  • Extended temperature range
  • Improved self-healing properties
  • High ripple current capability
  • Compact design for space efficiency

This capacitor is renowned for its stability and performance in tough environmental conditions, ensuring reliability in complex circuits.
