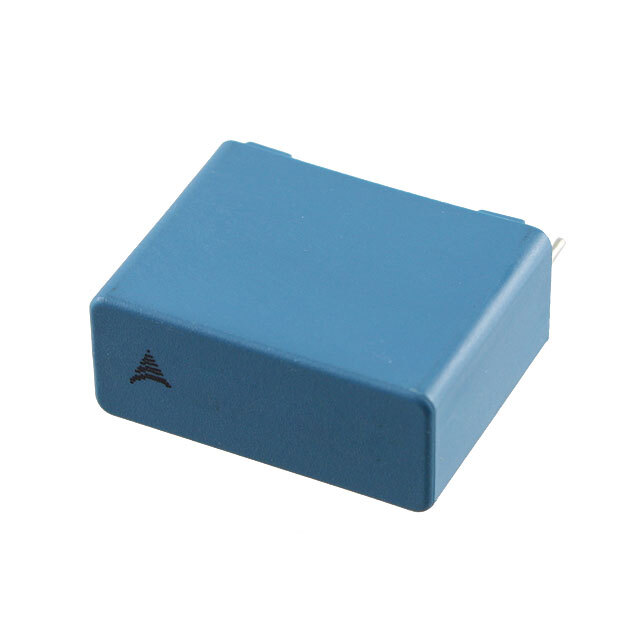

Same model may have multiple batches, images only for reference.
B32653A7224K000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32653A7224K000

Part No B32653A7224K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 1.25KVDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS (TDK)
Packaging Bulk
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package Radial
Dimension 1.043" L x 0.571" W (26.50mm x 14.50mm)
Height - Seated (Maximum) 1.161" (29.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Manufacturer Pack Quantity 1,040
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808329-B32653A7224K000
Ultra Librarian 3D Model Ultra Librarian B32653A7224K000 CAD Model

Description

This capacitor is designed for DC Link, DC Filtering, High Pulse, and DV/DT applications.

  • Capacitance: 0.22μF
  • Tolerance: ±10%
  • Voltage Rating AC: 500V
  • Voltage Rating DC: 1250V
  • Operating Temperature: -55°C to 100°C
  • Manufacturer: EPCOS (TDK)
  • Mounting Style: Through Hole
  • Lead Spacing: 0.886" (22.50mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Dimensions: 1.043" L x 0.571" W (26.50mm x 14.50mm)
