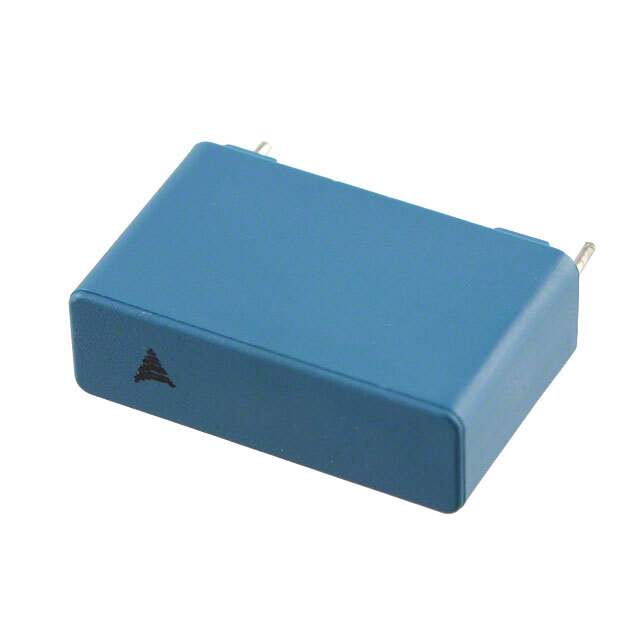

B32653A2682J000 Real Image
Same model may have multiple batches, images only for reference.

B32653A2682J000

Part No B32653A2682J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 6800PF 5% 2KVDC RADIAL / 6800 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3265* - MKP General Purpose
Package Bulk
Capacitance 6800 pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.335" W (26.50mm x 8.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32653A2682J000-ND,495-6879,B32653A2682J,B32653A2682J-ND
Standard Package 510
Win Source Part Number 1202692-B32653A2682J000
Ultra Librarian 3D Model Ultra Librarian B32653A2682J000 CAD Model

Description

The EPCOS (TDK) 1202692-B32653A2682J000 is a radial through-hole capacitor with a capacitance of 6800 pF and a tolerance of ±5%.

  • Capacitance: 6800 pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V
  • Applications: DC Link, DC Filtering, High Pulse, DV/DT
  • Operating Temperature Range: -55°C to 100°C
  • Dimension: 1.043" L x 0.335" W (26.50mm x 8.50mm)
  • AEC-Q200 Rating: Yes
