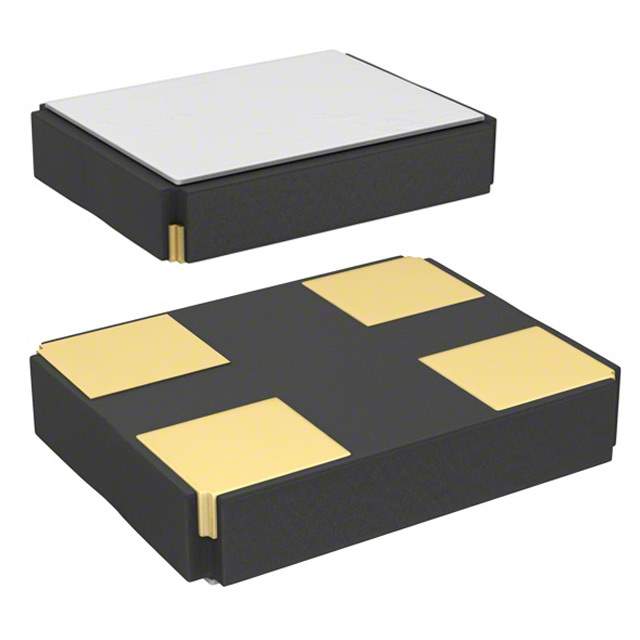

ECS-320-8-47-JTN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-320-8-47-JTN-TR

Part No ECS-320-8-47-JTN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 8PF SMD / 32 MHz ±20ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Datasheet
ECS-320-8-47-JTN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.014" (0.35mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number XC1972DKR,XC1972CT,XC1972TR
Standard Package 1,000
Win Source Part Number 1328359-ECS-320-8-47-JTN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-320-8-47-JTN-TR CAD Model

Description

The ECS-320-8-47-JTN-TR is a surface-mounted MHz crystal manufactured by ECS Inc.

  • Packaging: reel
  • Standard Package: 1,000
  • Frequency: 32 MHz
  • ESR: 100 Ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Operating Temperature: -40°C to 85°C
  • Case/Package: 4-SMD, no-lead
  • ROHS3 Compliant: Yes
