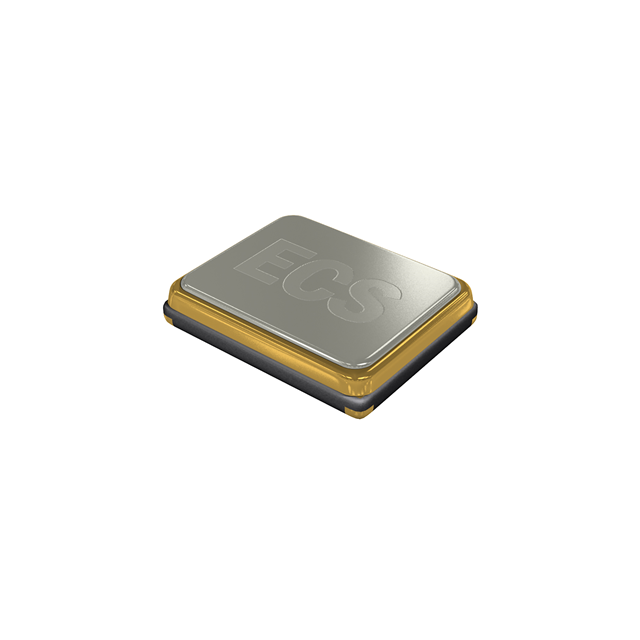

ECS-100-12-30-AEM-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-100-12-30-AEM-TR

Part No ECS-100-12-30-AEM-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 10.0000MHZ 12PF SMD / 10 MHz ±25ppm Crystal 12pF 80 Ohms 2-SMD, No Lead
Datasheet
ECS-100-12-30-AEM-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-53
Package Tape & Reel
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±25ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1351954-ECS-100-12-30-AEM-TR
Ultra Librarian 3D Model Ultra Librarian ECS-100-12-30-AEM-TR CAD Model

Description

The ECX-53 MHz Crystal is a high-quality crystal designed for use in various electronic devices from ECS Inc.

  • Frequency: 10 MHz
  • ESR: 80 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±25ppm
  • Load Capacitance: 12pF
  • Mode: Fundamental
  • Package: Tape and Reel
  • Mounting Type: Surface Mount
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height Seated (Max): 0.055" (1.40mm)
  • Operating Temperature: -20°C to 70°C
