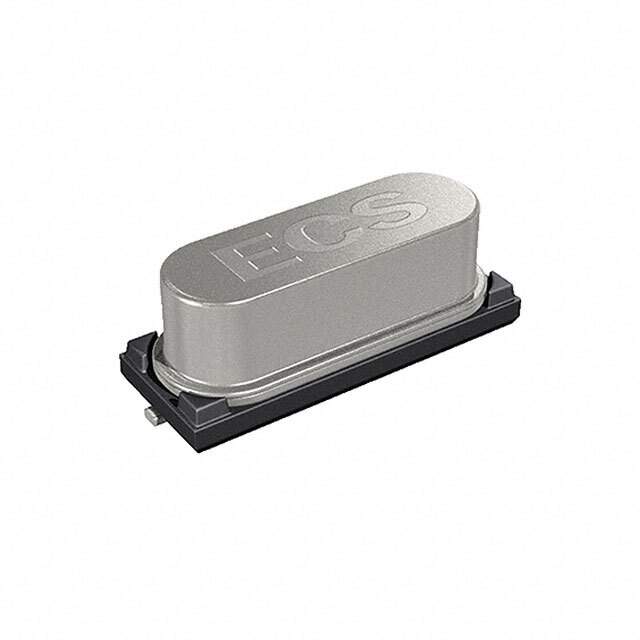

ECS-40-20-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-40-20-5PX-TR

Part No ECS-40-20-5PX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description SMD Quartz Crystal
Datasheet
ECS-40-20-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-7X
Packaging Reel - TR
Type MHz Crystal
Frequency 4MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package HC49/US
Size 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Win Source Part Number 1170727-ECS-40-20-5PX-TR
Manufacturer Homepage www.ecsxtal.com
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 19, 1999
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-40-20-5PX-TR CAD Model

Description

The ECS Inc. CSM-7X 1170727-ECS-40-20-5PX-TR is a MHz crystal with a frequency of 4MHz and a frequency tolerance of ±30ppm.

  • Operating Temperature: -10°C to 70°C
  • Frequency Stability: ±50ppm
  • Package: HC49/US
  • Size: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Mounting: Surface mount device
  • Height: 0.169" (4.30mm)
  • Shielded: Yes
  • Inductance: 6.8μH
  • Manufacturer: ECS Inc.
