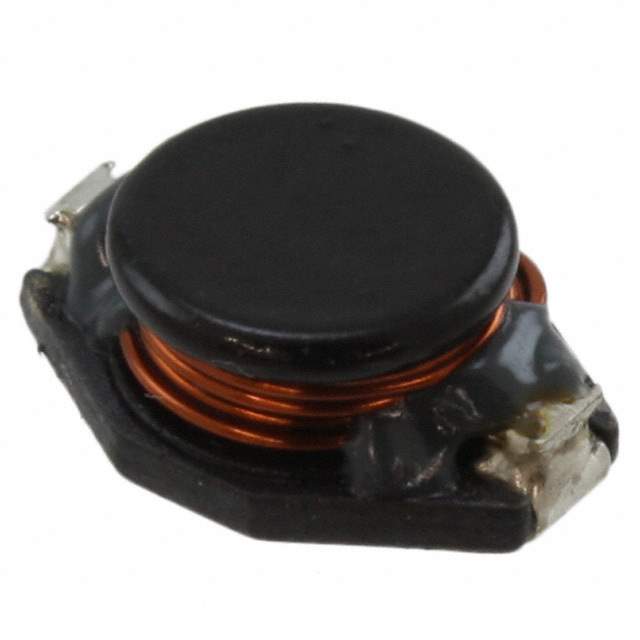

UP2UC-2R2-R Real Image
Same model may have multiple batches, images only for reference.

UP2UC-2R2-R

Part No UP2UC-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 6.1A 12 MOHM SMD / 2.2 µH Unshielded Wirewound Inductor 6.1 A 12mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Wirewound
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 6.1 A
Current - Saturation (Isat) 7A
Shielding Unshielded
DC Resistance (DCR) 12mOhm Max
Frequency - Self Resonant 80MHz
Temperature Range - Operating -25°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.205" (5.21mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number UP2UC-2R2-ND,283-4085-2,283-4085-1,UP2UC-2R2,UP2UC-2R2-R-ND,UP2UC2R2R,283-4085-6
Standard Package 600
Win Source Part Number 1327429-UP2UC-2R2-R
Ultra Librarian 3D Model Ultra Librarian UP2UC-2R2-R CAD Model

Description

This Eaton - Electronics Division fixed inductor is wirewound and unshielded.

  • Inductance: 2.2 µH
  • Maximum Height: 0.205"
  • Current Rating: 6.1A
  • DC Resistance: 12mOhm max
  • Frequency Self-Resonant: 80MHz
  • Tolerance: ±20%
  • Mounting: Surface Mountable
  • Case/Package: Non-Standard
  • Operating Temperature Range: -25°C to 85°C
  • ECCN: EAR99
