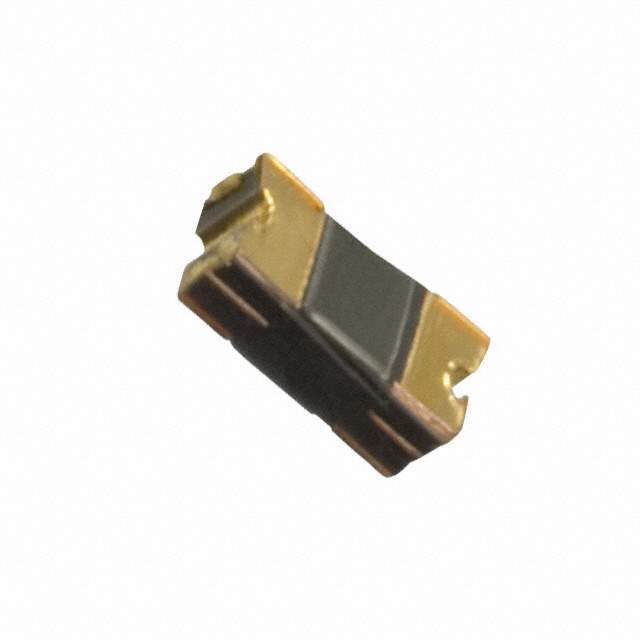

PC06F4A Real Image
Same model may have multiple batches, images only for reference.

PC06F4A

Part No PC06F4A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 4A 32VAC/VDC 0603
Datasheet
PC06F4A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 4A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.27034
Approvals UL
Nominal Cold Resistance 0.012 Ohm
Win Source Part Number 103655-PC06F4A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC06F4A CAD Model

Description

The Eaton Bussmann PC06F4A is a board mount (cartridge style excluded) fuse with a current rating of 4A and a voltage rating of 32V AC/DC.

  • Current Rating: 4A
  • Voltage Rating: 32V AC/DC
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Approvals: UL
  • Package: Reel-TR
  • Mounting Style: SMD (SMT)
  • Nominal Melting-I2t: 0.27034
  • Nominal Cold Resistance: 0.012 Ohm
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
