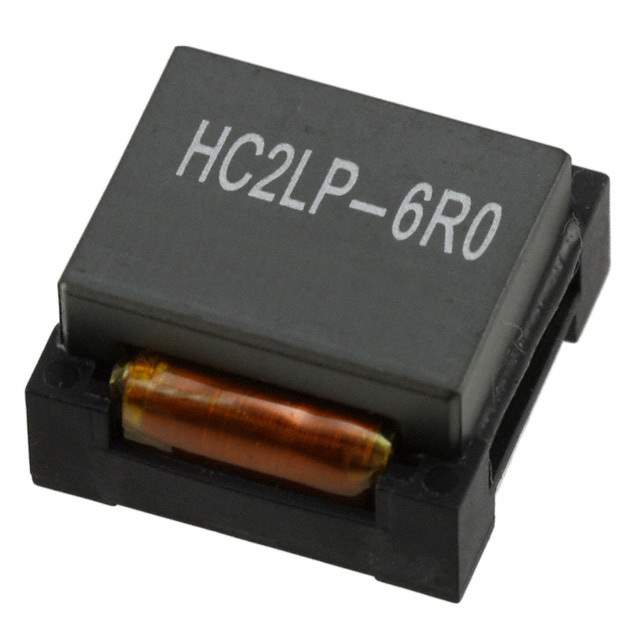

HC2LP-6R0-R Real Image1 HC2LP-6R0-R Real Image2
Same model may have multiple batches, images only for reference.
HC2LP-6R0-R Real Image1 HC2LP-6R0-R Real Image2
HC2LP-6R0-R Real Image1 HC2LP-6R0-R Real Image2
Same model may have multiple batches, images only for reference.

HC2LP-6R0-R

Part No HC2LP-6R0-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 6UH 17A 4.6 MOHM SMD / 6 µH Unshielded Drum Core, Wirewound Inductor 17 A 4.6mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton Bussmann
Series HC2LP
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6 µH
Tolerance ±20%
Current Rating (Amps) 17 A
Current - Saturation (Isat) 16.5A
Shielding Unshielded
DC Resistance (DCR) 4.6mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 300 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.756" L x 0.756" W (19.20mm x 19.20mm)
Height - Seated (Max) 0.440" (11.18mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 130 pcs
Win Source Part Number 1382204-HC2LP-6R0-R
Ultra Librarian 3D Model Ultra Librarian HC2LP-6R0-R CAD Model

Description

The 1199340 is a fixed inductor manufactured by Eaton Bussmann.

  • Product Category: Fixed Inductors
  • Series: HC2LP
  • Construction: Drum Core, Wirewound
  • Package: Tape and Reel
  • Shielding: Unshielded
  • Size: 0.756" x 0.756" (19.20mm x 19.20mm)
  • Inductance: 6µH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 4.6mOhm
  • Current Rating: 17A
  • Operating Temperature: -40°C to 85°C
