Same model may have multiple batches, images only for reference.

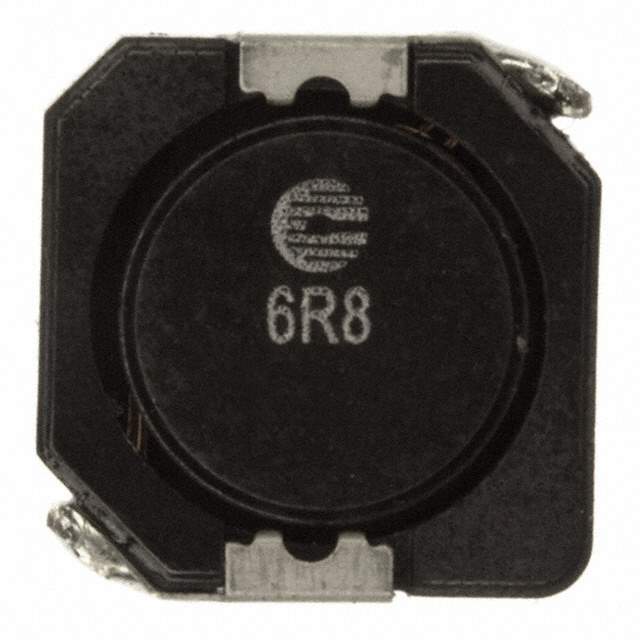

DR1030-6R8-R Real Image
Same model may have multiple batches, images only for reference.

DR1030-6R8-R

Part No DR1030-6R8-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 6.8UH 3.5A 30 MOHM SMD / 6.8 µH Shielded Drum Core, Wirewound Inductor 3.5 A 30mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 3.9A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 513-1336-6,513-1336-2,DR10306R8R,513-1336-1
Standard Package 1,000
Win Source Part Number 1327407-DR1030-6R8-R
Ultra Librarian 3D Model Ultra Librarian DR1030-6R8-R CAD Model

Description

Eaton - Electronics Division's 1327407-DR1030-6R8-R is a surface-mount fixed inductor that has a packaging of reel - TR.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.413" L x 0.406" W (10.50mm x 10.30mm)
  • Inductance: 6.8 μH
  • Height Seated (max): 0.118" (3.00mm)
  • Standard Package: 1,000
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • Material - Core: Ferrite
  • DC Resistance (DCR): 30mOhm Max
  • Temperature Range - Operating: -40°C ~ 125°C
  • Case/Package: Nonstandard
  • RoHS3 Compliant: Yes
