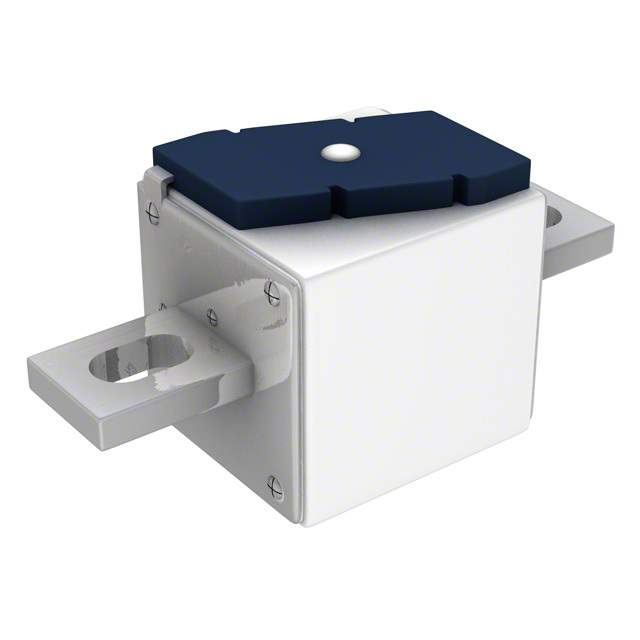

170M3766 Real Image
Same model may have multiple batches, images only for reference.

170M3766

Part No 170M3766
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE SQUARE 250A 700VAC RECT / 250A 700 V AC DC Fuse Square Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Package Bulk
Mounting Type Bolt Mount
Fuse Type Square
Current Rating (Amps) 250A
Voltage Rating - AC 700 V
Applications Electrical, Industrial
Features Indicating
Approval Agency CSA, UR
Breaking Capacity @ Rated Voltage 200kA
Package / Case Rectangular, Blade
Dimension 1.969" L x 1.772" W x 2.323" H (50.00mm x 45.00mm x 59.00mm)
Melting I2t 4200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 2
Win Source Part Number 1073866-170M3766
Ultra Librarian 3D Model Ultra Librarian 170M3766 CAD Model

Description

The Eaton 1073866-170M3766 is an electronic component that falls under the category of circuit protection and electrical specialty fuses.

  • Manufacturer: Eaton
  • Fuse Type: square
  • Voltage Rating: 700 V AC
  • Breaking Capacity @ Rated Voltage: 200kA
  • Melting I2t: 4200
  • Application: electrical and industrial applications
  • Popularity: medium
  • Threat of Fake Products: 48%
  • Package: rectangular, blade
  • Dimension: 1.969" L x 1.772" W x 2.323" H (50.00mm x 45.00mm x 59.00mm)
  • ECCN: EAR99
  • HTSUS Code: 8536.10.0040
  • Approvals: CSA and UR
