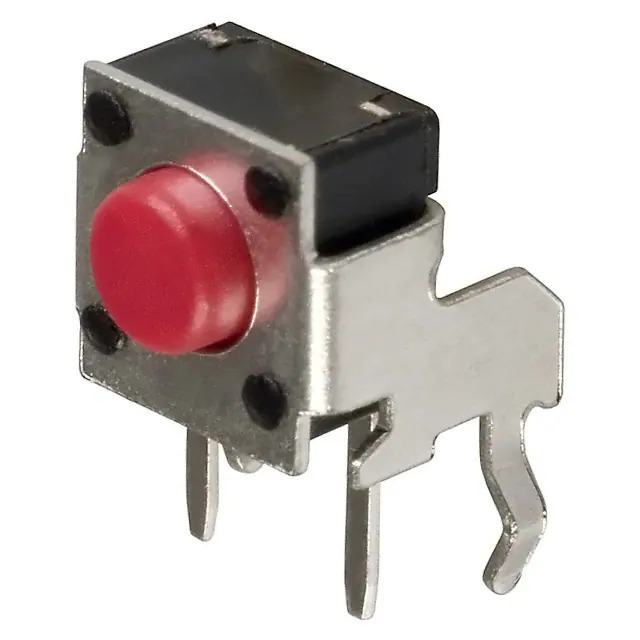

TL1105VF250Q E-Switch
Same model may have multiple batches, images only for reference.

TL1105VF250Q

Part No TL1105VF250Q
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet
TL1105VF250Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL1105
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole, Right Angle
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle 3.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.10mm x 6.55mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 250gf
Ingress Protection -
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL1105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376521-TL1105VF250Q
Ultra Librarian 3D Model Ultra Librarian TL1105VF250Q CAD Model

Description

The TL1105VF250Q tactile switch by E-Switch is a versatile electronic component.

  • Mounting Type: Through-Hole, Right Angle
  • Size: 7.10mm x 6.55mm
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Operating Force: 250gf
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 100,000 Cycles
  • Material: Polyamide (PA)
