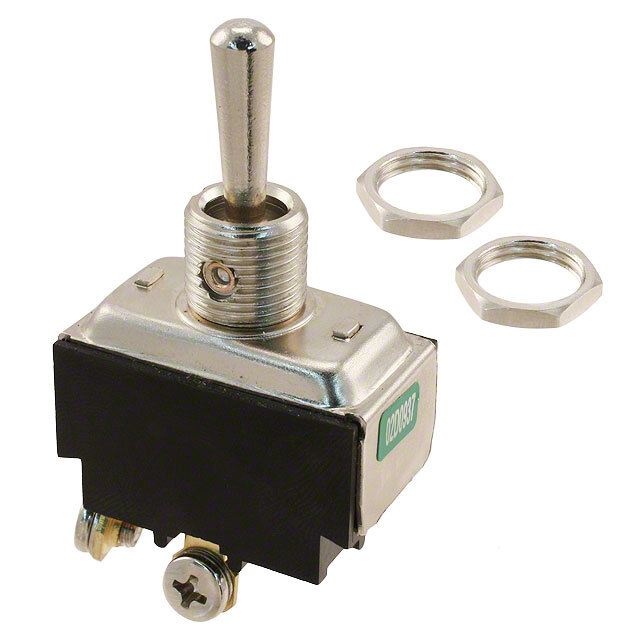

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Panel Mount
Circuit 3PST
Switch Function On-Off
Current Rating (Amps) 24A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 21.70mm
Illumination Non-Illuminated
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.00mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating 0°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1564992-ST34RE00
Ultra Librarian 3D Model Ultra Librarian ST34RE00 CAD Model
