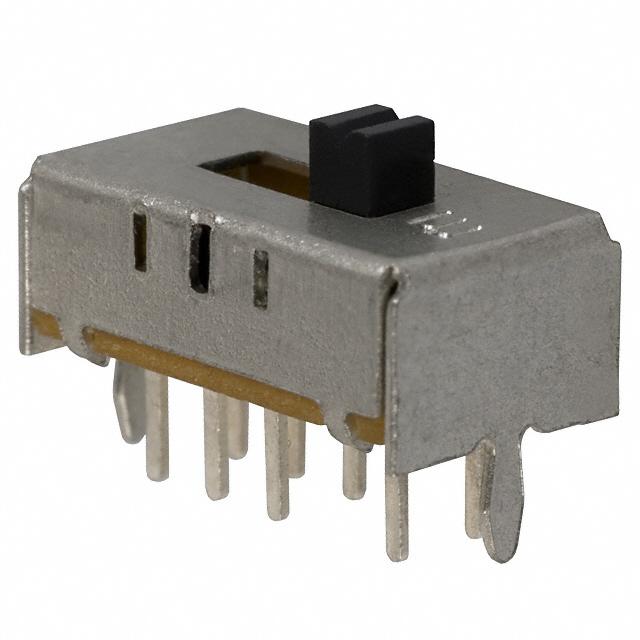

EG2305A E-Switch
Same model may have multiple batches, images only for reference.

EG2305A

Part No EG2305A
Manufacturer E-Switch
Catalog Slide Switches
Description SWITCH SLIDE DP3T 200MA 30V
Datasheet
EG2305A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Bulk
Status Active
Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating 200mA (DC)
Voltage Rating - DC 30V
Actuator Type Standard
Actuator Length 2.00mm
Contact Finish Silver
Mounting Through Hole
Termination Style PC Pin
Switch Travel 2.00mm
Temperature Range - Operating -20°C to 70°C
Operating Force 250/300gf
Win Source Part Number 1040491-EG2305A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EG2305A CAD Model

Description

The E-Switch EG2305A is a DP3T switch that features a PC pin termination style and a silver contact finish.

  • Actuator Length: 2.00mm
  • Switch Travel: 2.00mm
  • Mounting Type: Through Hole
  • Operating Force: 250/300gf
  • ECCN: EAR99
  • REACH: Unaffected
  • Product Popularity: Medium
  • Supply and Demand Status: Sufficient
