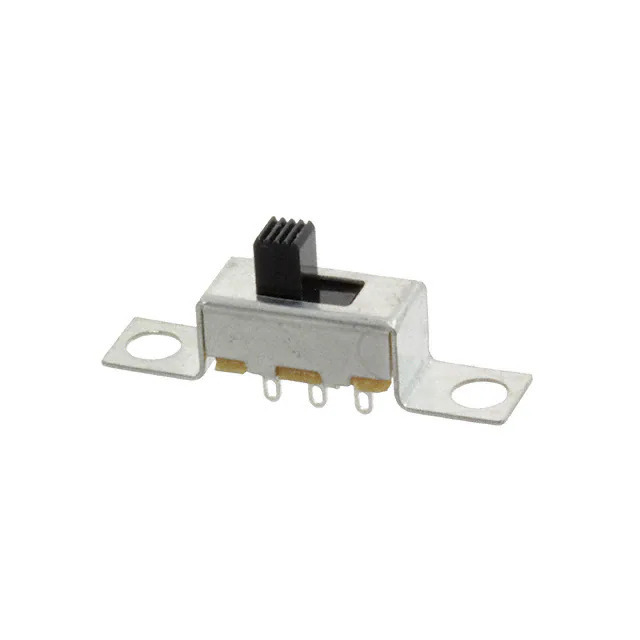

EG1205 E-Switch
Same model may have multiple batches, images only for reference.

EG1205

Part No EG1205
Manufacturer E-Switch
Catalog Slide Switches
Description SWITCH SLIDE SPDT 200MA 30V
Datasheet
EG1205 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material -
Switch Travel 3.00mm
Mechanical Life -
Electrical Life -
Operating Force 200gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1372071-EG1205
Ultra Librarian 3D Model Ultra Librarian EG1205 CAD Model

Description

The EG1205 slide switch by E-Switch is a reliable and durable electronic component.

  • Mounting Type: Panel Mount
  • Voltage Rating: 30V DC
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 200mA
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Switch Travel: 3.00mm
  • Operating Force: 200gf
