Diodes Incorporated STPR1640CTW Overview

The STPR1640CTW from Diodes Incorporated is a high-performance Schottky rectifier designed for power supply applications. This component is engineered to provide efficient, low voltage drop rectification of alternating currents in a variety of electronic devices. It is ideal for use in switch-mode power supplies, free-wheeling diodes, and polarity protection applications.

Key Features

• High Current Capability: The STPR1640CTW can handle a high average rectified current, making it suitable for applications with high power demands.
• Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which enhances power efficiency by minimizing power loss during operation.
• High Surge Current Capability: It can withstand high surge currents, ensuring reliability and robustness in applications subject to current spikes.
• Dual Diode Configuration: This component comes in a dual diode common cathode configuration, which is useful for full-wave rectification in AC-to-DC conversion circuits.
• Thermal Resistance: Its low thermal resistance ensures efficient heat dissipation, contributing to stable performance and a longer lifespan.

Electrical Characteristics

• Reverse Voltage: The rectifier has a maximum repetitive peak reverse voltage of 40V.
• Forward Current: It supports a high average forward rectified current of 16A with adequate heat sinking.
• Operating Junction Temperature: The STPR1640CTW can operate over a wide temperature range, making it suitable for industrial applications.

Package and Mounting

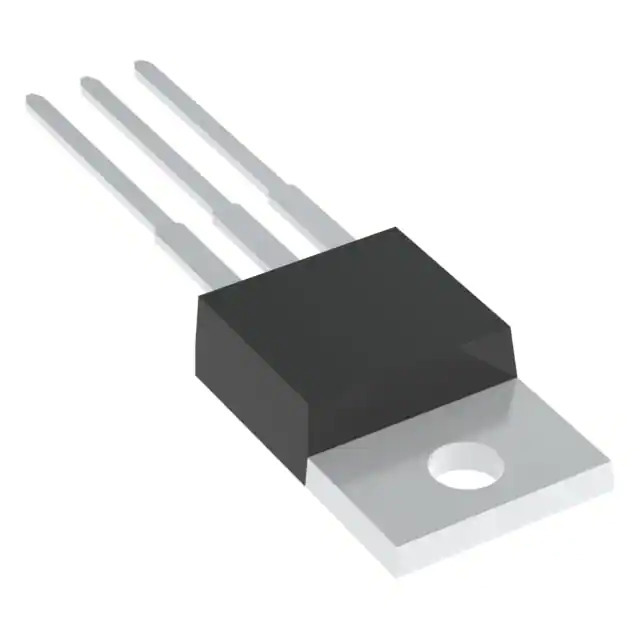

The STPR1640CTW is available in a TO-220AB package, which is widely used and easy to mount on a printed circuit board (PCB). The package is designed for optimal thermal performance, ensuring that the device can handle its power dissipation requirements.

Applications

This Schottky rectifier is versatile and can be used in various applications, including:

• Power supply management
• DC-DC converters
• Automotive applications
• Power factor correction circuits
• LED lighting systems

With its robust design and efficient performance, the STPR1640CTW from Diodes Incorporated is an excellent choice for designers looking for a reliable Schottky rectifier for their power management solutions.
