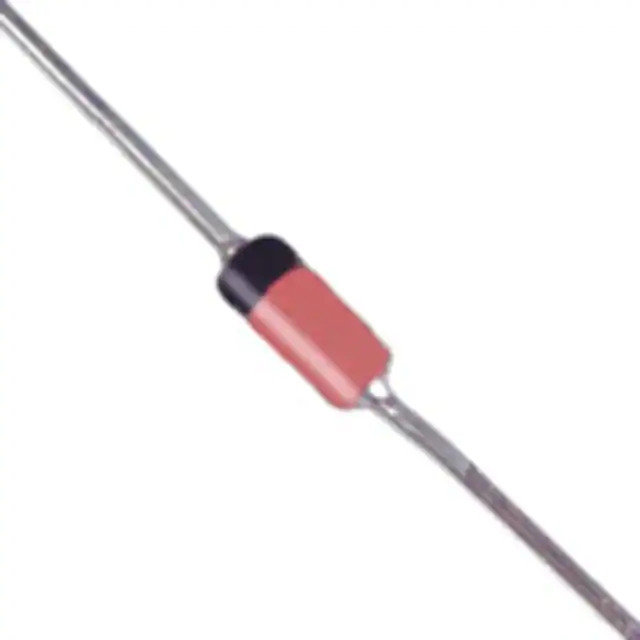

The SD103A-T is a high-performance Schottky barrier diode designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This diode is particularly well-suited for applications requiring fast switching and low voltage drop. Its compact design and efficiency make it an ideal choice for a wide range of electronic circuits.

Key Features

• Low Forward Voltage Drop: The diode features a low forward voltage drop, which enhances overall system efficiency by reducing power loss during operation.
• Fast Switching Speed: With its quick response time, the SD103A-T is capable of fast switching, making it suitable for high-frequency applications.
• High Reliability: Built with robust materials, this diode offers a long operational life and consistent performance, ensuring reliability in critical applications.
• Low Leakage Current: The device exhibits low leakage current, which is beneficial for battery-powered devices as it minimizes power consumption when in the off state.

Applications

The SD103A-T is used in a variety of applications, including:

• Power supply circuits
• DC-DC converters
• Reverse battery protection
• Switching power supplies
• Freewheeling diodes in converters and motor control circuits

Technical Specifications

Parameter Value Package DO-35 Peak Repetitive Reverse Voltage 40 V Average Rectified Forward Current 350 mA Operating Temperature Range -65°C to 125°C

With its combination of features, the SD103A-T from Diodes Incorporated is an excellent choice for designers looking for a reliable and efficient Schottky diode. Whether for use in commercial, industrial, or automotive environments, this diode offers the performance and durability needed for demanding electronic applications.
