Introducing the B1100-13-F Rectifier Diode from Diodes Incorporated

The B1100-13-F is a high-quality Schottky barrier rectifier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This component is engineered to offer efficient low-voltage drop and fast switching functionality, making it an excellent choice for a wide range of electronic applications.

Key Features of the B1100-13-F

• High Current Capability: With a forward current of 1A, the B1100-13-F can handle significant current, making it suitable for high-power applications.
• Low Forward Voltage Drop: The low forward voltage drop minimizes power loss and improves efficiency, which is crucial for battery-powered devices.
• Fast Switching Speed: Its fast response time is ideal for high-frequency operations and applications requiring quick switching capabilities.
• High Surge Capability: The B1100-13-F is designed to withstand high surge currents, offering robust performance during transient conditions.

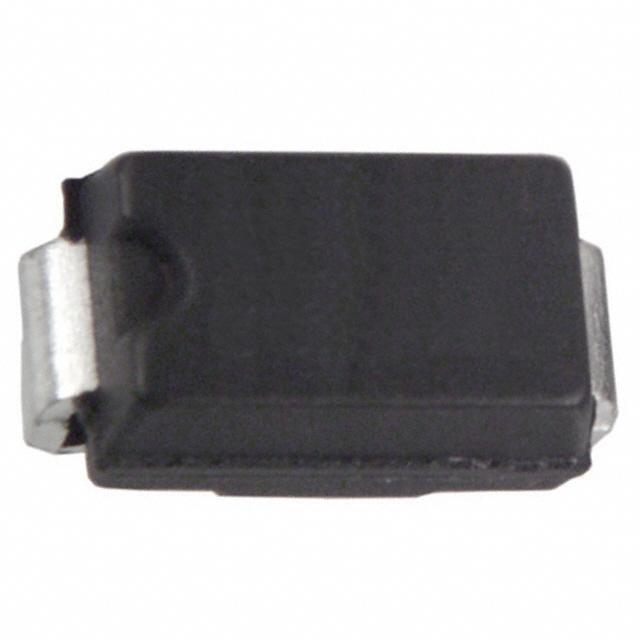

• Thermal Performance: The device is encapsulated in a DO-214AC (SMA) package, which provides excellent thermal performance and ensures reliability over a wide operating temperature range.

Applications

The B1100-13-F is versatile and can be used in various electronic circuits, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes in converters and motor control circuits
• Polarity protection devices

Technical Specifications

• Package: DO-214AC (SMA)
• Forward Continuous Current (IF): 1A
• Maximum Recurrent Peak Reverse Voltage (VRRM): 100V
• Forward Voltage Drop (VF): 0.85V at 1A
• Operating Junction Temperature: -65°C to 125°C

The B1100-13-F from Diodes Incorporated represents a balance of performance, durability, and efficiency, making it an excellent choice for engineers and designers looking for a reliable rectifier diode. Whether you're working on power management, automotive electronics, or portable devices, the B1100-13-F offers the functionality and reliability needed to meet the demands of your applications.
