Same model may have multiple batches, images only for reference.

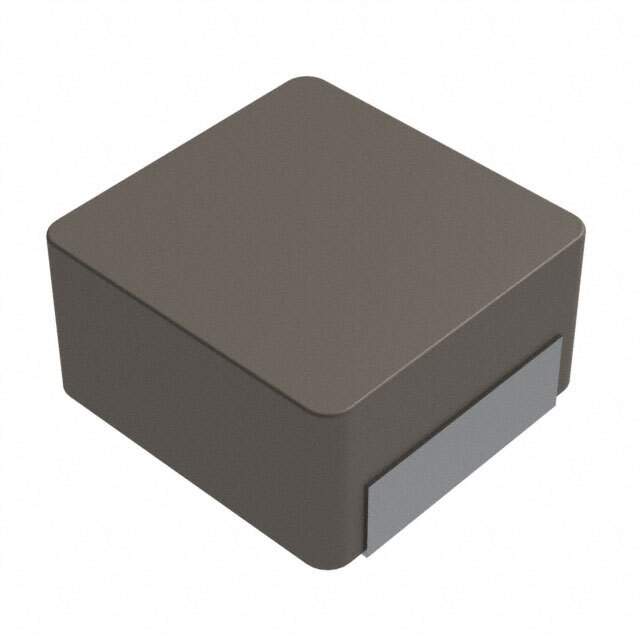

VCHA042A-3R3MS6 Real Image
Same model may have multiple batches, images only for reference.

VCHA042A-3R3MS6

Part No VCHA042A-3R3MS6
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 3.3UH 4.6A 36.8MOHM SM / 3.3 µH Unshielded Inductor 4.6 A 36.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Delta Electronics/Cyntec
Packaging Reel - TR
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 4.6 A
Current - Saturation (Isat) 3.4A
Shielding Unshielded
DC Resistance (DCR) 36.8mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Base Product Number VCHA042A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number VCHA042A-3R3MS6-ND,2037-VCHA042A-3R3MS6TR,2037-VCHA042A-3R3MS6DKR,2037-VCHA042A-3R3MS6CT
Standard Package 2,000
Win Source Part Number 1329248-VCHA042A-3R3MS6
Ultra Librarian 3D Model Ultra Librarian VCHA042A-3R3MS6 CAD Model

Description

The VCHA042A-3R3MS6 is a fixed inductor from Delta Electronics/Cyntec.

  • Package Type: Nonstandard
  • Shielding: Unshielded
  • Size/Dimension: 0.165" L x 0.157" W (4.20mm x 4.00mm)
  • Mounting Type: Surface Mount
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • Temperature Range: -55°C to 165°C
  • AEC-Q200: Yes
  • REACH: Unaffected
  • DC Resistance: 36.8mOhm
  • Current Saturation: 3.4A
