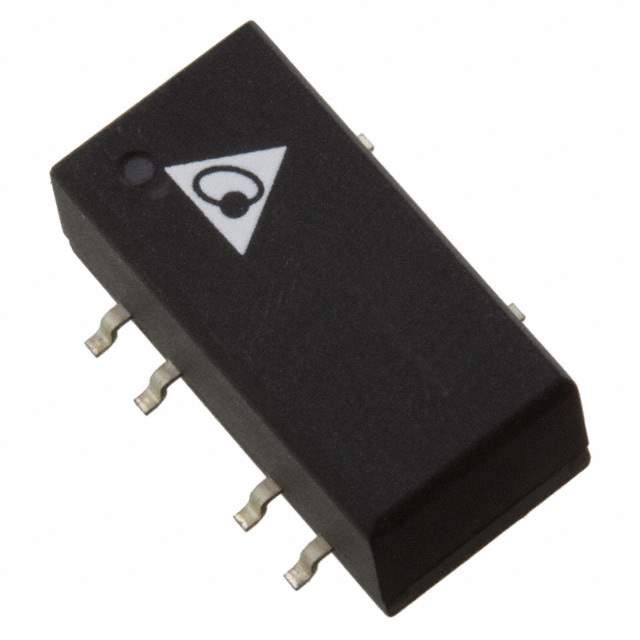

SH01D2415A

Name: SH01D2415A
Brand: Delta Electronics
SKU: 1237413
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SH01D2415A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 21.6V - 26.4V Input
Datasheet	SH01D2415A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01D
Other Names	941-1299
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237413-SH01D2415A
Ultra Librarian 3D Model	Ultra Librarian SH01D2415A CAD Model

Alternative Products

Description

The Delta Electronics SH01D2415A is a DC DC converter that is designed to provide a high level of performance and reliability.

Power: 1W
Efficiency: 78%
Voltage Isolation: 1.5kV
Number of Outputs: 2
Current Output (Max): 33mA, 33mA
Voltage Input (Min): 21.6V
Voltage Input (Max): 26.4V
Voltage Output 1: 15V
Voltage Output 2: -15V
Temperature Range: -40°C to 85°C
RoHS: Compliant
