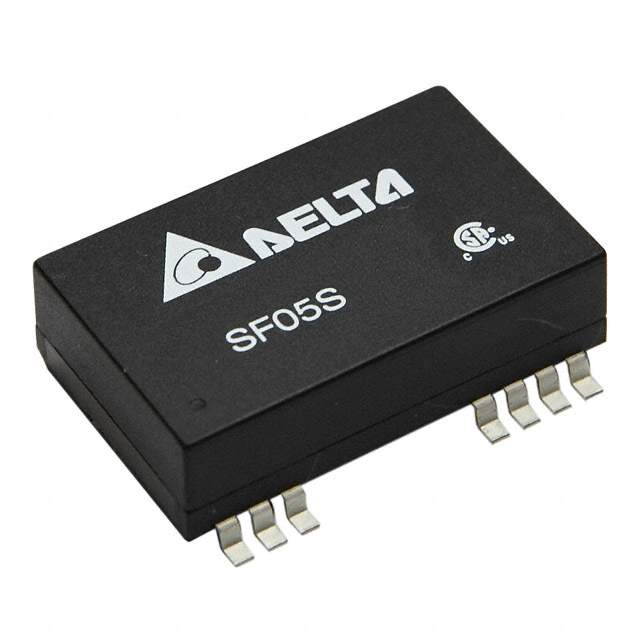

Same model may have multiple batches, images only for reference.

SF05S4803A

Get a Quote

Part No	SF05S4803A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 5W / Isolated Module DC DC Converter 1 Output 3.3V 1.2A 36V - 75V Input
Datasheet	SF05S4803A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	1.2A
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1370
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237435-SF05S4803A
Ultra Librarian 3D Model	Ultra Librarian SF05S4803A CAD Model

Alternative Products

Description

The SF05S/D (5W) series isolated module DC-DC converter is an excellent choice for medical applications.

Features: remote On/Off, OCP, SCP, and UVLO
Package: comes in a tube package and has 10 standard packages
Mounting: surface-mounted
Power Output: 5W
Voltage Isolation: 1.5 kV
Output: one output
Maximum Output Current: 1.2A
Input Voltage: ranges from 36V to 75V
Efficiency: 78%
Package: 24-SMD module, 12 leads package
Operating Temperature Range: -40°C to 71°C
Dimensions: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
MSL Level: 2 (1 Year)
REACH Status: REACH Unaffected
HTSUS: 8504.40.9580
Manufacturer: Delta Electronics
