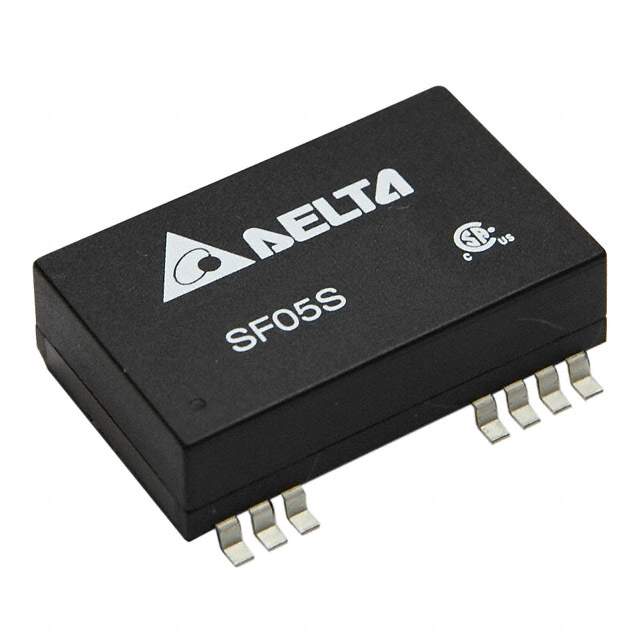

The Delta Electronics 1237426-SF05D4812A is a power supply component with an isolated module type.

• Series: SF05S/D (5W)
• Package: in a tube
• Standard Package: 10 units
• Features: remote on/off, OCP, SCP, and UVLO
• Application: suitable for medical applications
• Mounting: SMD (SMT)
• Power Output: 5 W
• Voltage Isolation: 1.5 kV
• Number of Outputs: 2
• Maximum Current Output: 208mA for each output
• Voltage Input Range: from 36V to 75V
• Voltage Output: for output 1 is 12V and the voltage output for output 2 is -12V
• Efficiency: 85%
• Temperature Range: for operating is from -40°C to 71°C
• Dimension: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
• Radiation Hardened: This component is not radiation hardened
• Military Standards: does not meet military standards
• Recommendation: This product is not recommended for new designs.
