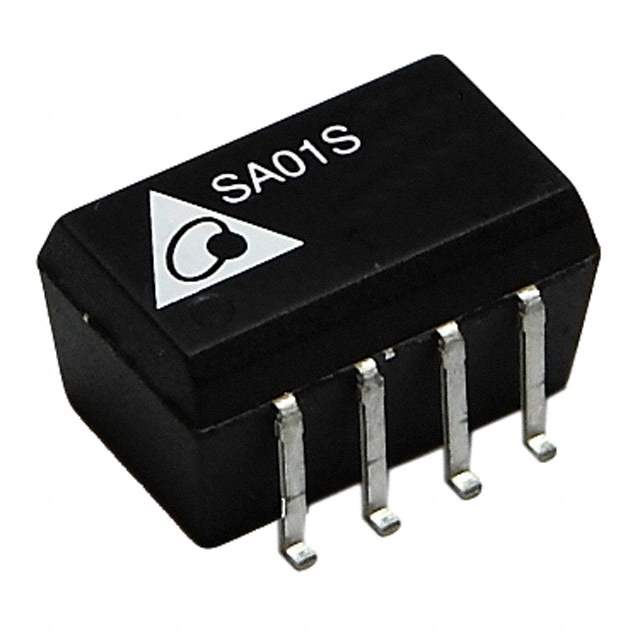

Same model may have multiple batches, images only for reference.

SA01S1209A

Name: SA01S1209A
Brand: Delta Electronics
SKU: 1237504
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA01S1209A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 110mA 10.8V - 13.2V Input
Datasheet	SA01S1209A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	9V
Current - Output (Max)	110mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01S
Other Names	941-1242
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237504-SA01S1209A
Ultra Librarian 3D Model	Ultra Librarian SA01S1209A CAD Model

Alternative Products

Description

The SA01S (1W) series of isolated module DC-DC converters from Delta Electronics is a reliable and efficient power supply solution for medical applications.

Voltage Isolation: 1 kV
Maximum Output Current: 110mA
Input Voltage Range: from 10.8V to 13.2V
Output Voltage: 9V
Features: SCP
Efficiency: 78%
Package/Case: an 8-SMD module
Operating Temperature Range: from -40°C to 85°C
Dimension: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Mfr part number: 941-1242
