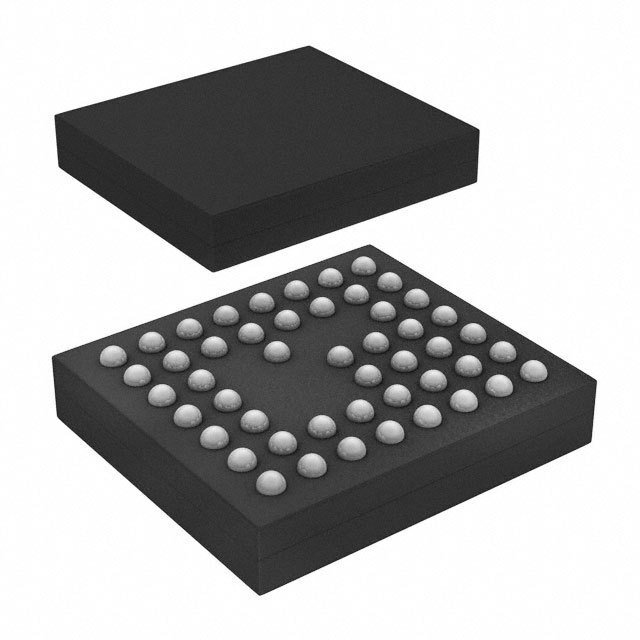

Same model may have multiple batches, images only for reference.
BCM20704UA1KFFB1G Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

BCM20704UA1KFFB1G

Part No BCM20704UA1KFFB1G
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 49FCBGA / Bluetooth v4.1 (BLE) + EDR SMART SOC Class I/Class II 2Mbps 3.3V 49-Pin FCBGA Tray
Datasheet
BCM20704UA1KFFB1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Cypress Semiconductor Corp
Packaging Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Frequency 2.4GHz
Data Rate (Maximum) 2Mbps
Power - Output 12dBm
Sensitivity -95.5dBm
Serial Interfaces SPI, UART
GPIO 8
Operating Supply Voltage 3.3V
Operating Temperature Range -30°C ~ 85°C
Package 49-VFBGA, FCBGA
Win Source Part Number 769731-BCM20704UA1KFFB1G
Popularity Medium
Supply and Demand Status Limited
Family Name BCM20704UA1KFFB1G
Introduction Date January 01, 2000
ECCN 5A992.c
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BCM20704UA1KFFB1G CAD Model

Description

The Cypress Semiconductor Corp BCM20704UA1KFFB1G is a TxRx + MCU type component from Cypress Semiconductor Corp.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Operating Temperature: -30°C ~ 85°C
  • GPIO: 8
  • Serial Interfaces: SPI, UART
  • Power Output: 12dBm
  • Sensitivity: -95.5dBm
  • Operating Supply Voltage: 3.3V
  • Category: RF/IF and RFID
  • EOL Date: Obsolete
