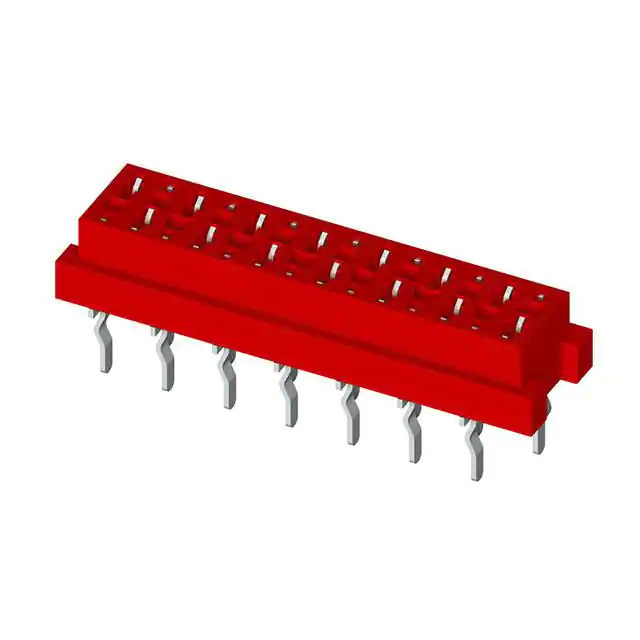

CA3204V1300

Name: CA3204V1300
Brand: Cvilux USA
SKU: 1364502
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CA3204V1300
Manufacturer	Cvilux USA
Catalog	Rectangular Connectors
Description	1.27MM (.050") FEMALE TOP ENTRY / 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	CA3204V1300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Cvilux USA
Series	CA32
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.059" (1.50mm)
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Insulation Color	Red
Insulation Height	0.165" (4.19mm)
Contact Length - Post	0.114" (2.90mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	1.5A
Voltage Rating	230VAC/DC
Applications	-
Insulation Material	Polyester, Glass Filled
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364502-CA3204V1300
Ultra Librarian 3D Model	Ultra Librarian CA3204V1300 CAD Model

Description

The CA3204V1300 is a rectangular connector header receptacle manufactured by Cvilux USA.

Series: CA32
Connector Type: Header Receptacle
Application: Board-to-Board or Cable
Number of Positions: 4
Number of Rows: 2
Pitch: 0.100" (2.54mm)
Current Rating: 1.5A
Contact Material: Phosphor Bronze
Insulation Material: Polyester, Glass-Filled
Voltage Rating: 230VAC/DC
Operating Temperature: -40°C to 105°C
Termination Options: Press-Fit and Solder
