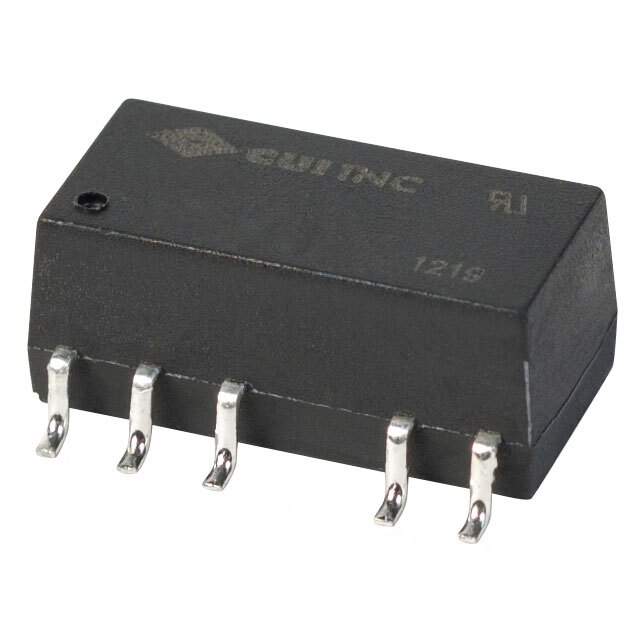

VEFT1-S24-S24-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

VEFT1-S24-S24-SMT-TR

Part No VEFT1-S24-S24-SMT-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1W / Isolated Module DC DC Converter 1 Output 24V 42mA 21.6V - 26.4V Input
Datasheet
VEFT1-S24-S24-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series VEFT1-SMT (1W)
Package Tape & Reel
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 24V
Current - Output (Max) 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting SMD (SMT)
Package / Case 12-SMD Module, 10 Leads
Dimension 0.60" L x 0.30" W x 0.24" H (15.2mm x 7.6mm x 6.0mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 102-2139-1,VEFT1S24S24SMTTR,102-2139-2,VEFT1-S24-S24-SMT,VEFT1-S24-S24-SMT-ND,102-2139-6,656-90799R
Standard Package 500
Win Source Part Number 1181359-VEFT1-S24-S24-SMT-TR
Ultra Librarian 3D Model Ultra Librarian VEFT1-S24-S24-SMT-TR CAD Model

Description

The VEFT1-SMT (1W) series isolated module DC-DC converter is a reliable and efficient power supply solution for ITE (Commercial) applications.

  • Series: VEFT1-SMT (1W)
  • Application: ITE (Commercial)
  • Voltage Isolation: 3 kV
  • Maximum Output Current: 42mA
  • Power: 1 W
  • Efficiency: 80%
  • Protection: SCP
  • Package: 12-SMD Module, 10 Leads
  • Dimensions: 0.60" L x 0.30" W x 0.24" H (15.2mm x 7.6mm x 6.0mm)
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: CUI Inc.
  • Status: Obsolete
