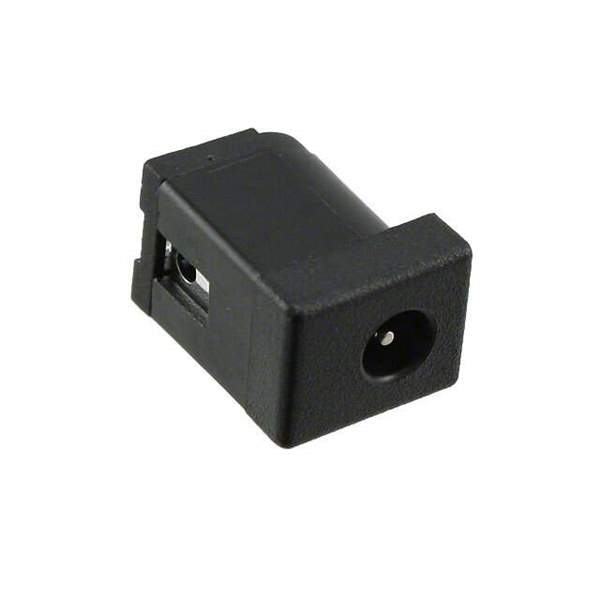

The CUI Devices PJ-055C is a male jack connector designed for use in power connectors.

• Packaging: Bulk
• Connector Type: Jack
• Termination: Solder Eyelet(s)
• Contact Material: Brass, Copper Alloy
• Gender: Male
• Housing Material: Polybutylene Terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
• Standard Package: 500 Units
• Mounting Type: Through Hole
• Voltage Rated: 24VDC
• Internal Switch(s): Single Switch, Normally Closed
• Contact Material Plating: Tin
• Industry Recognized Mating Diameter: 1.00mm ID (0.039"), 3.40mm OD (0.134")
• Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
• Mating Length/Depth: 0.354" (9.00mm)
• Operating Temperature: -25°C ~ 85°C
• Body Color: Black
• ECCN: EAR99
