Same model may have multiple batches, images only for reference.

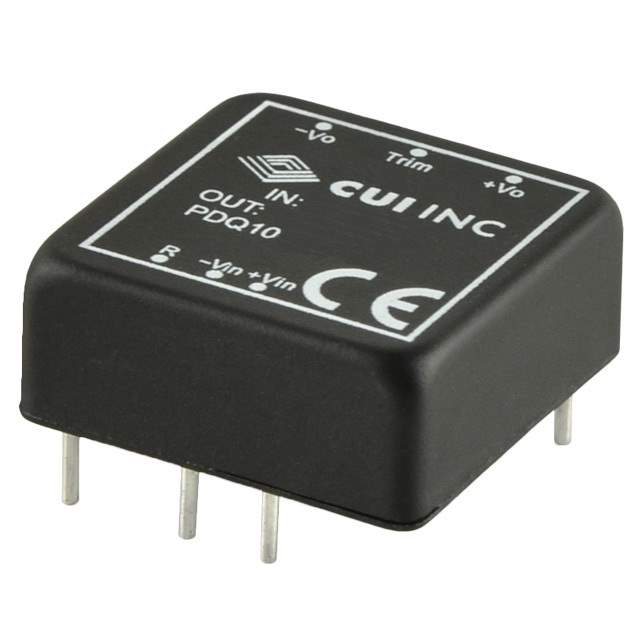

PDQ10-Q24-D5-D Real Image
Same model may have multiple batches, images only for reference.

PDQ10-Q24-D5-D

Part No PDQ10-Q24-D5-D
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 10W / Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 9V - 36V Input
Datasheet
PDQ10-Q24-D5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDQ10-D (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1A, 1A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 105°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 6-DIP Module
Control Features Enable, Active High
Approval Agency EN
Standard Number 55032 Class A
Base Product Number PDQ10
Standard Package 12
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1348623-PDQ10-Q24-D5-D
Ultra Librarian 3D Model Ultra Librarian PDQ10-Q24-D5-D CAD Model

Description

The PDQ10-D (10W) Isolated Module DC DC Converter by CUI Inc. is a board mount component that features remote on/off, OCP, OVP, SCP, UVLO.

  • Package: Tube
  • Application: ITE (Commercial)
  • Standard Package: 12
  • Mounting Feature: Through-Hole
  • Power (Watts): 10W
  • Outputs: 2
  • Current Output (Max): 1A, 1A
  • Voltage Input (Min): 9V
  • Voltage Input (Max): 36V
  • Voltage Output 1: 5V
  • Voltage Output 2: -5V
  • Efficiency: 84%
  • Industry-Recognized Mating Diameter: 2.50mm ID (0.098") , 5.50mm OD (0.217")
  • Base Product Number: PDQ10
  • ECCN: EAR99
